This page has every Plating and Structural Steel Drawing N2 August paper we have, from 2018 to 2021: 3 question papers and 3 memos in 12 PDFs. Files are in Afrikaans. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Plating and Structural Steel Drawing N2 August papers by year
Plating and Structural Steel Drawing N2 August 2021 question papers and memos
August 2021

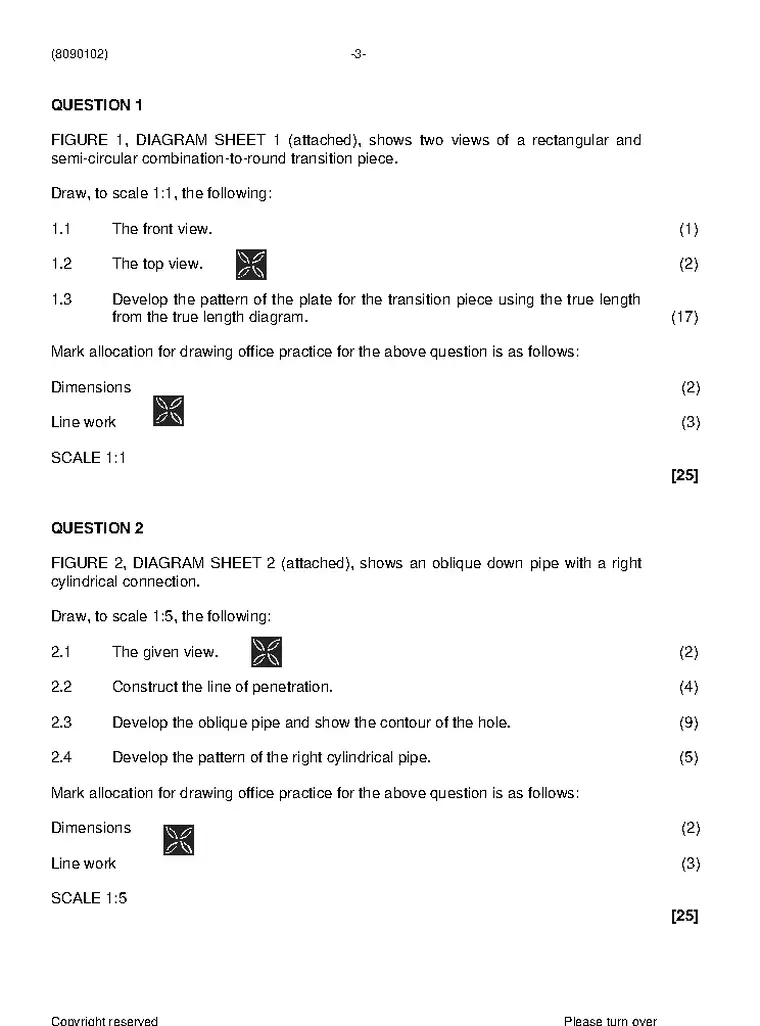

Plating and Structural Steel Drawing N2 August 2021 question paper
100 marks · 4 hours · 5 pages · 5 questions
What is in this paper (5 questions)
Q1
FIGURE 1, DIAGRAM SHEET 1 (attached), shows two views of a rectangular and 25 marks
Q2
FIGURE 2, DIAGRAM SHEET 2 (attached), shows an oblique down pipe with a right 25 marks
Q3
FIGURE 3, DIAGRAM SHEET 2 (attached), shows a conical hopper with three 25 marks
Q4
FIGURE 4, DIAGRAM SHEET 3 (attached), shows an off-centre oblique T-piece made 25 marks
Q5
FIGURE 5, DIAGRAM SHEET 3 (attached), shows an isometric view of a bracket 25 marks
Instructions to candidates Answer any FOUR questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Show all construction lines. Answer TWO questions on the front and TWO questions on the reverse side of the DRAWING SHEET. Add dimensions to the answers. Work neatly. (8090102) -3-
Plating and Structural Steel Drawing N2 August 2019 question papers and memos
August 2019

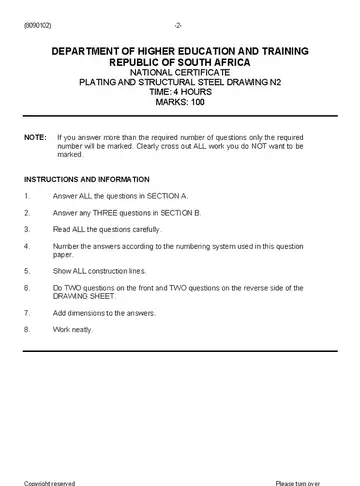

Plating and Structural Steel Drawing N2 August 2019 question paper
100 marks · 4 hours · 7 pages · 5 questions
What is in this paper (5 questions)
Q1
FIGURE 1, below, shows a welded base of a column. 25 marks
Q2
FIGURE 2, below, shows TWO views of a twisted transition piece. 25 marks
Q3
FIGURE 3, below shows a front view of a conical hood. 25 marks
Q4
FIGURE 4, below, shows a common central sphere connection. 25 marks
Q5
FIGURE 5, below shows a junction between a hexagonal pipe and a round pipe. 25 marks
Instructions to candidates Answer ALL the questions in SECTION A. Answer any THREE questions in SECTION B. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Show ALL construction lines. Do TWO questions on the front and TWO questions on the reverse side of the DRAWING SHEET. Add dimensions to the answers. Work neatly. (8090102) -3-
Plating and Structural Steel Drawing N2 August 2018 question papers and memos
August 2018

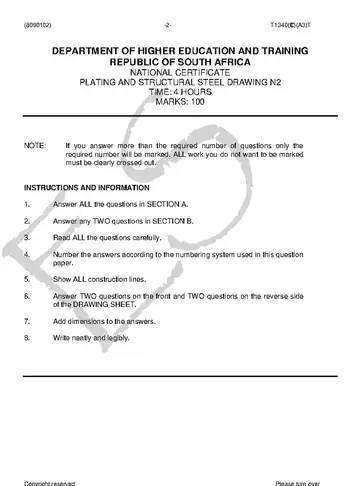

Plating and Structural Steel Drawing N2 August 2018 question paper
100 marks · 4 hours · 4 pages · 5 questions
What is in this paper (5 questions)
Q1
FIGURE 1, DIAGRAM SHEET 1 (attached), shows two views of an intersection 25 marks
Q2
FIGURE 2, DIAGRAM SHEET 1 (attached), shows two views of an oblique T-piece 25 marks
Q3
FIGURE 3, DIAGRAM SHEET 2 (attached), shows two views of a twisted rectangular- 25 marks
Q4
FIGURE 4, DIAGRAM SHEET 3 (attached), shows a T-piece that is reinforced with a 25 marks
Q5
FIGURE 5, DIAGRAM SHEET 3 (attached), shows an oblique connection between a 25 marks
Instructions to candidates Answer ALL the questions in SECTION A. Answer any TWO questions in SECTION B. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Show ALL construction lines. Answer TWO questions on the front and TWO questions on the reverse side of the DRAWING SHEET. Add dimensions to the answers. Write neatly and legibly. (8090102) -3- T1340(E)(A3)T
