Building and Structural Construction N5 December Past Papers and Memos

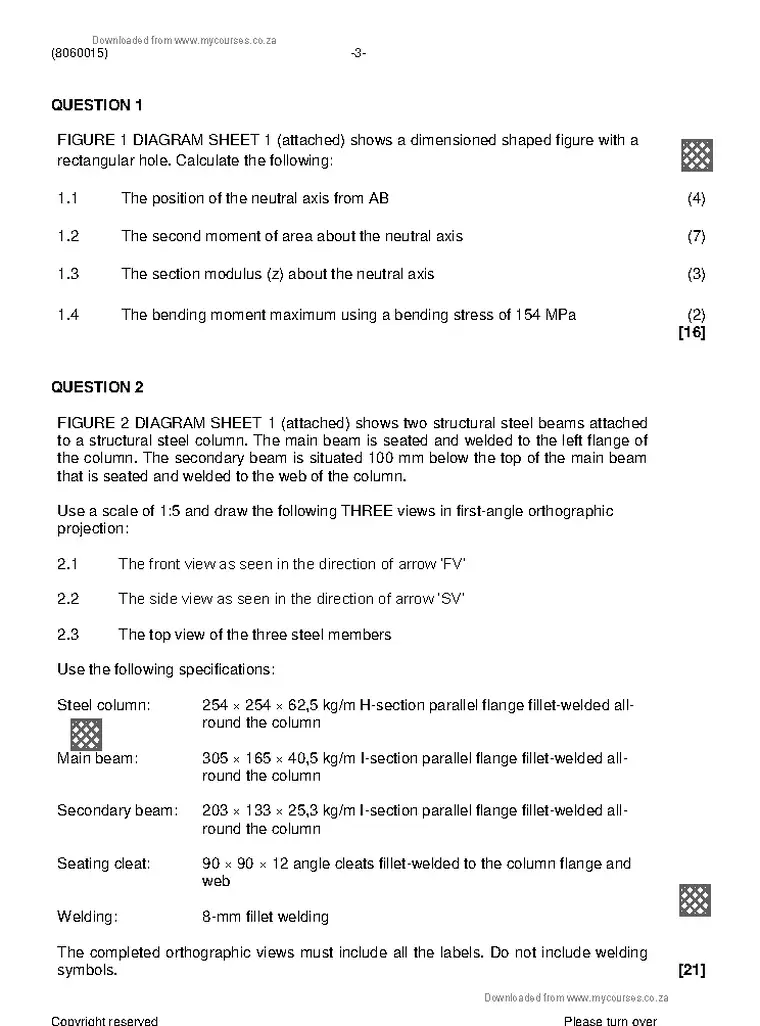

1. Q1 FIGUUR 1 DIAGRAMBLAD 1 (aangeheg) toon ʼn gevormde figuur met afmetings met ʼn 16 marks
2. Q2 FIGUUR 2 DIAGRAMBLAD 1 (aangeheg) toon twee struktuurstaalbalke wat aan ʼn 21 marks
3. Q3 FIGUUR 3 DIAGRAMBLAD 2 (aangeheg) toon ses Graad 4,6 M12-boute wat gebruik is 12 marks
4. Q4 4.1 Gebruik ʼn skaal van 1:10 en teken ʼn vertikale langsdeursneeaansig by die 30 marks
5. Q5 FIGUUR 5 DIAGRAMBLAD 2 (aangeheg) toon ʼn staalbalk wat met twee puntlasse en 21 marks

Instructions to candidates

1. Answer all the questions.
2. Read all the questions carefully.
3. Questions 1, 3, 5 and 6 must be done in the ANSWER BOOK. Questions 2 and 4 must be done on the supplied A2 drawing paper. OPTION: You may draw the shear force and bending moment diagrams on the drawing paper.
4. Number the answers according to the numbering system used in this question paper.
5. All drawings must be drawn in pencil with bold outlines.
6. The drawings must be done in accordance to National Standards and be fully labelled with descriptive notes and dimensions (where applicable).
7. All calculations must conform to the relevant SABS/SANS Code of Practice.
8. Use only a blue or black pen.
9. Write neatly and legibly. (8060015) -3-
