This page has every Building and Structural Construction N5 August paper we have, from 2018 to 2021: 3 question papers and 3 memos in 6 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Building and Structural Construction N5 August papers by year
Building and Structural Construction N5 August 2021 question papers and memos
August 2021

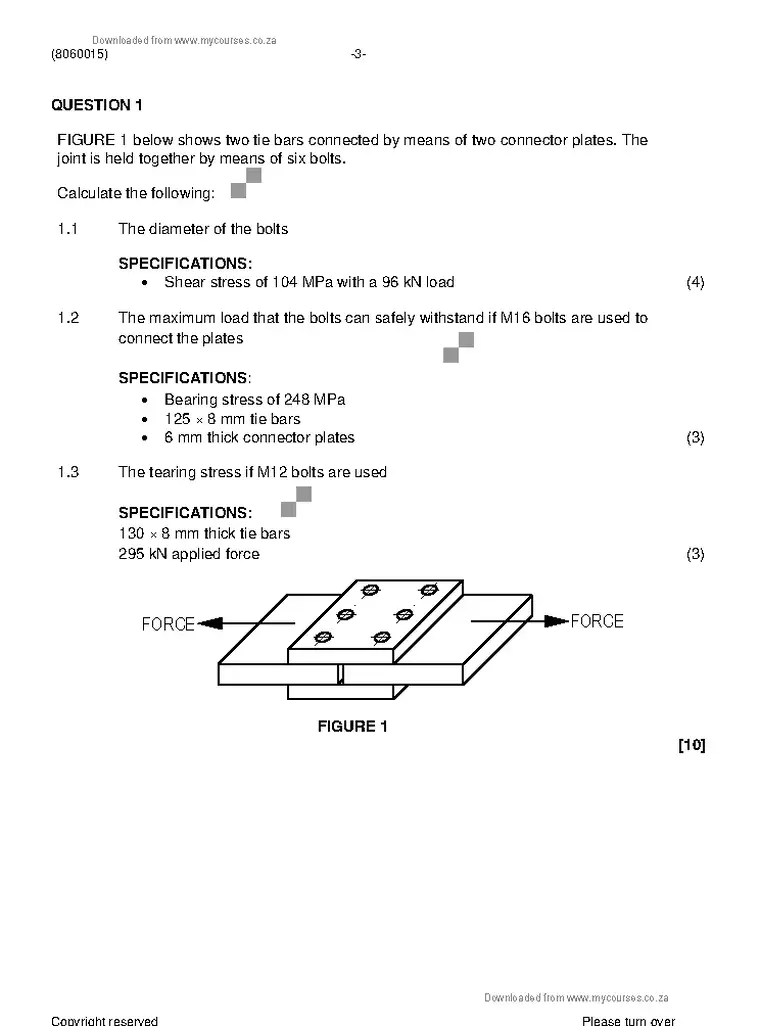

Building and Structural Construction N5 August 2021 question paper
100 marks · 4 hours · 7 pages · 7 questions
What is in this paper (7 questions)
Q1
FIGURE 1 below shows two tie bars connected by means of two connector plates. The 10 marks
Q2
An edge beam is 450 mm deep and 270 mm wide. It is supported by a 270 × 270 mm 20 marks
Q3
Draw to scale 1:5 a vertical, longitudinal sectional view through three steps of a steel 15 marks
Q4
Study the Warren-type steel frame in FIGURE 2 below and answer the questions. 20 marks
Q5
FIGURE 3 below shows two concrete slabs, each cast over two brick walls. 10 marks
Q6
Draw to scale 1:10 the horizontal cross-sectional views of the following reinforced 10 marks
Q7
FIGURE 4 below shows a compound sectional view of five rectangular parts. The total 15 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Answer QUESTION 4 on the A3 drawing paper. Answer QUESTIONS 5 and 6 on the A2 drawing paper. Answer all the other questions in the ANSWER BOOK. Number the answers according to the numbering system used in the question paper. Do all drawings in pencil with bold outlines. Do all drawings in accordance with the National Standards. All drawings must be fully labelled with descriptive notes and dimensions where applicable. All calculations must conform to the relevant SABS/SANS Code of Practices. Write neatly and legibly. (8060015) -3-
Building and Structural Construction N5 August 2019 question papers and memos
August 2019

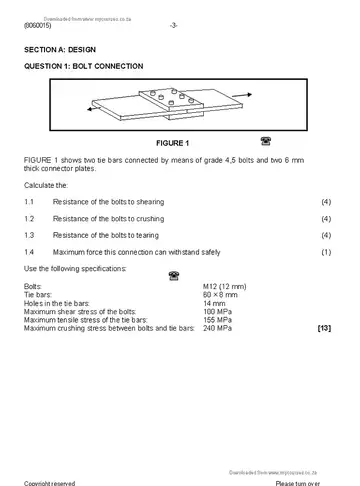

Building and Structural Construction N5 August 2019 question paper
100 marks · 4 hours · 7 pages · 6 questions
What is in this paper (6 questions)
Q1
Bolt Connection FIGURE 1 shows two tie bars connected by means of grade 4,5 bolts and two 6 mm 13 marks
Q2
Loaded Beam 8 kN 10 kN 2 kN/m 8 kN 22 marks
Q3
Frame FIGURE 3 shows a loaded roof truss. 17 marks
Q4
Concrete Foundation A reinforced concrete pad foundation supports a reinforced concrete circular column. 20 marks
Q5
Wooden Staircase Draw, to scale 1:10, a verticall ongitudinal section through a wooden staircase with 14 marks
Q6
Concrete Floors Explain, by means of neat sectional drawings, the method of construction of fixing the 14 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Draw a 20 mm border line around the DRAWING SHEET on both sides. Use only pencil on the DRAWING SHEET. Use both sides of the DRAWING SHEET. Draw ALL drawings to the required scale. Approximate calculations to THREE decimals. Use your discretion where dimensions are NOT given. Write neatly and legibly. (8060015) -3-
Building and Structural Construction N5 August 2018 question papers and memos
August 2018

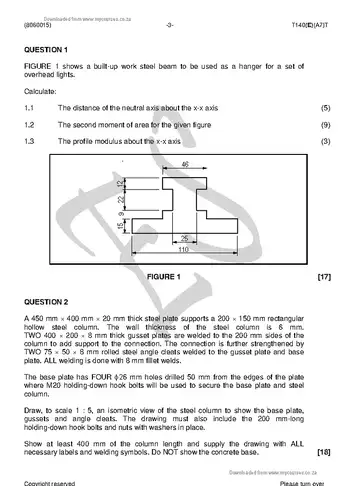

Building and Structural Construction N5 August 2018 question paper
100 marks · 4 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
FIGURE 1 shows a built-up work steel beam to be used as a hanger for a set of 17 marks
Q2
A 450 mm × 400 mm × 20 mm thick steel plate supports a 200 × 150 mm rectangular 18 marks
Q3
A straight-flight staircase must be erected up to an emergency exit door of a 20 marks
Q4
FIGURE 2 on the DIAGRAM SHEET (attached) shows a half-lap joint made up from 12 marks
Q5
Make neat drawings of each of the following types of reinforced concrete foundations: 10 marks
Q6
FIGURE 3 on the DIAGRAM SHEET (attached), shows a steel beam loaded with 23 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. QUESTIONS 2, 3 and 5 must be done on the DRAWING SHEET. QUESTIONS 1, 4 and 6 must be answered in the ANSWER BOOK. ALL drawings must be done in pencil with bold outlines. ALL drawings must be done in accordance with National Standards and be fully labelled with descriptive notes and dimensions (where applicable). ALL calculations must conform to the relevant SABS/SANS Codes of Practice. Write neatly and legibly. (8060015) -3- T140(E)(A7)T
