This is the N1 Building Drawing written in the August 2018 exams. The paper counts 100 marks and learners had 4 hours to finish it. It has 6 questions. Below you can download the question paper and memo as free PDFs, then mark your answers with the memo.
Download the August 2018 PDFs
-

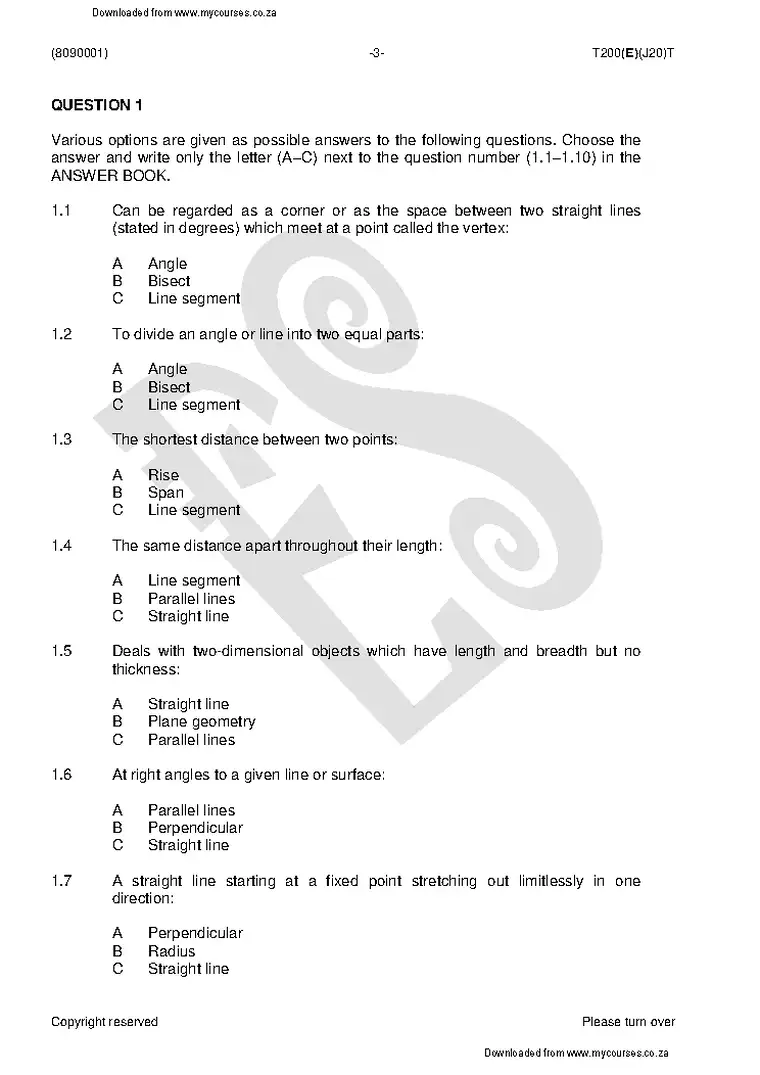

N1 Building Drawing August 2018 Question Paper
Download the building drawing n1 aug 2018 question paper PDF. A real August exam paper to practise with before your own tests.
Question PaperAugust exam
-
N1 Building Drawing August 2018 Memo
Official memorandum (marking guideline) for N1 Building Drawing Aug 2018. Free PDF download to check your work after writing the paper.
MemoAugust exam
What is in this paper
6 questions, 100 marks in total. Marks per question are taken from the paper itself.
- Q1 Various options are given as possible answers to the following questions. Choose the 10 marks
- Q2 The external walls of a house are built with one-brick walls that have 330 mm and 20 marks
- Q3 Draw, to scale 1 : 1, an octagon polygon with eight equal sides of 50 mm long. [10] 10 marks
- Q4 The FIGURE on the DIAGRAM SHEET (attached) shows the outline of a one-brick 20 marks
- Q5 Draw, to scale 1 : 10, a vertical section through a galvanised sheet ridging. 20 marks
- Q6 An external raised and fielded panel door is 2 030 mm high, 820 mm wide and 20 marks
Instructions to candidates
- Answer ALL the questions.
- Read ALL the questions carefully.
- Number the answers according to the numbering system used in this question paper.
- ALL drawings must be drawn to the required scale.
- ALL drawings, as well as candidate information, must be done in pencil.
- Drawings must be neat, reasonably large, in proportion and fully labelled in capital letters.
- A balanced layout is very important and candidates will be penalised for poor planning.
- ALL drawings must comply with the relevant SANS (SABS) recommended codes.
- Use your own discretion where dimensions are NOT given.
- Write neatly and legibly. (8090001) -3- T200(E)(J20)T
