This is the N4 Digital Electronics written in the November 2016 exams. The paper counts 100 marks and learners had 3 hours to finish it. It has 5 questions. Below you can download the question paper and memo as free PDFs, then mark your answers with the memo.
Download the November 2016 PDFs
-

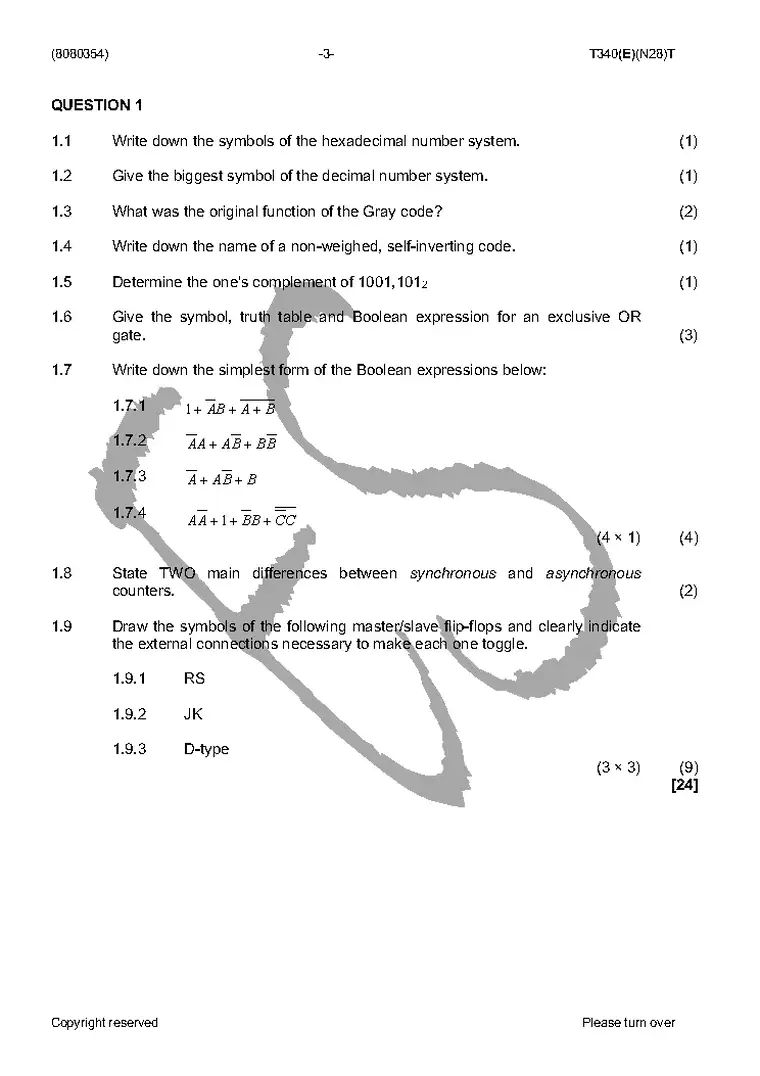

N4 Digital Electronics November 2016 Question Paper
N4 Digital Electronics question paper, Nov 2016. Download the PDF and practise under exam conditions, then use the matching memo.
Question PaperNovember exam
-
N4 Digital Electronics November 2016 Memo
Marking memo for the Digital Electronics N4 November exam 2016. Use this digital electronics n4 nov 2016 memo to mark your answers and see exactly where the marks go.
MemoNovember exam
What is in this paper
5 questions, 100 marks in total. Marks per question are taken from the paper itself.
- Q1 1.1 Write down the symbols of the hexadecimal number system. 24 marks
- Q2 2.1 Do the following calculations in the binary number system. Show ALL 26 marks
- Q3 3.1 Draw the circuit diagram of the Boolean expression below without changing or 18 marks
- Q4 4.1 Design a 4-bit parallel-in/parallel-out shift register using D-type flip-flops. 17 marks
- Q5 Make a neat labelled sketch of a D-type master/slave flip-flop which consists of only 15 marks
Instructions to candidates
- Answer ALL the questions.
- Read ALL the questions carefully.
- Number the answers according to the numbering system used in this question paper.
- Keep subsections of questions together.
- Rough calculations may be done at the back of the ANSWER BOOK.
- Write neatly and legibly. (8080354) -3- T340(E)(N28)T
