This page has every Building and Structural Surveying N4 November paper we have, from 2013 to 2022: 5 question papers and 3 memos in 8 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Building and Structural Surveying N4 November papers by year
Building and Structural Surveying N4 November 2022 question papers and memos
November 2022

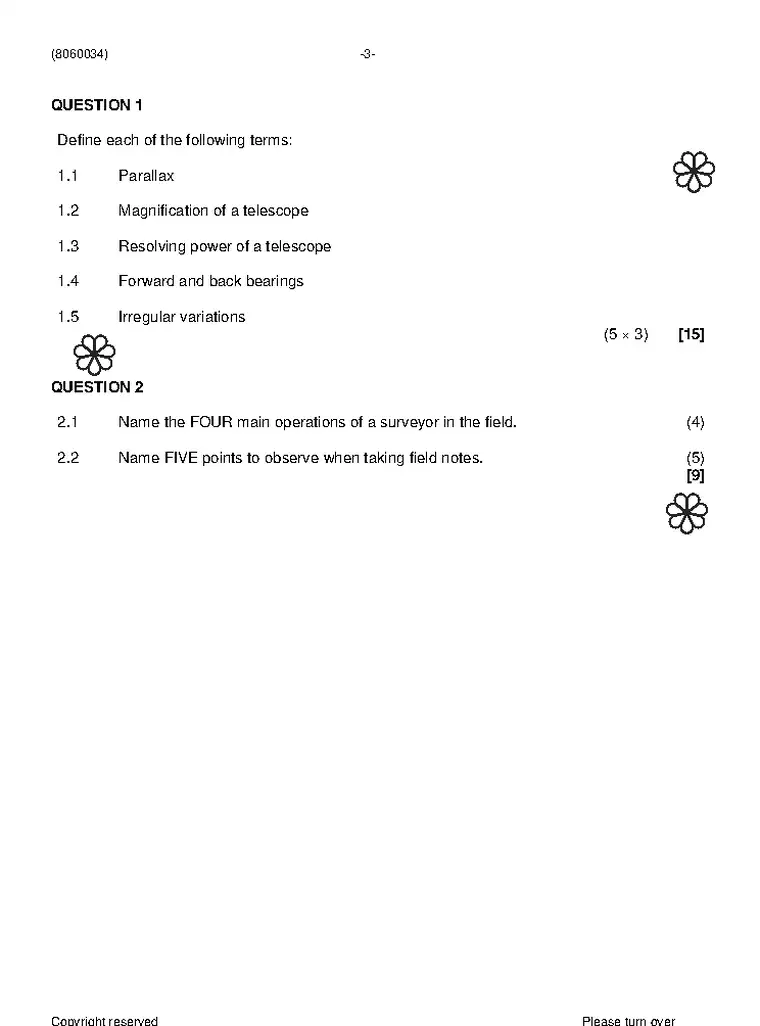

Building and Structural Surveying N4 November 2022 question paper
100 marks · 3 hours · 6 pages · 7 questions
What is in this paper (7 questions)
Q1
Define each of the following terms: 15 marks
Q2
2.1 Name the FOUR main operations of a surveyor in the field. (4) 9 marks
Q3
Choose a term from COLUMN B that matches a description in COLUMN A. Write only 10 marks
Q4
4.1 Distinguish between natural scales and engineering scales. (2 + 2) (4) 17 marks
Q5
Show, by means of a simple sketch, how each of the following details are shown on a 10 marks
Q6
6.1 Name FOUR main methods of surveying with a plane table. (4) 10 marks
Q8
8.1 It is required to set off a 100 m track on a sports field with a 60 m steel tape 16 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Start each question on a new page. Use only a black or blue pen. Write neatly and legibly. (8060034) -3-
Building and Structural Surveying N4 November 2020 question papers and memos
November 2020

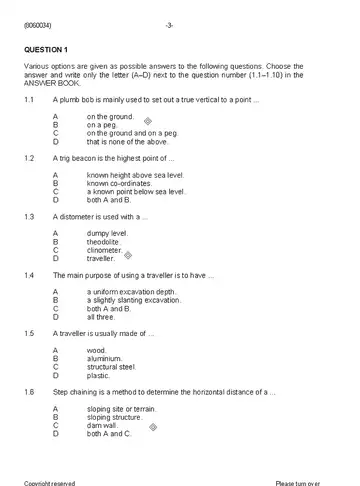

Building and Structural Surveying N4 November 2020 question paper
100 marks · 3 hours · 6 pages · 7 questions
What is in this paper (7 questions)
Q1
Various options are given as possible answers to the following questions. Choose the 10 marks
Q2
2.1 Explain alidade regarding plane table equipment. (5) 20 marks
Q3
3.1 A Distance of 82,400 m between two pegs was attained with a 100 m steel 13 marks
Q4
4.1 What is the difference betweent ilting level and dumpy level with regard to a 13 marks
Q5
5.1 Steel tapes are brittle, elastic and prone to rust. 24 marks
Q6
6.1 A plot with the shape of a trapezium has the following measurements: 15 marks
Q7
7.1 Name FOUR main methods of surveying using a plane table. (4) 5 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Write neatly and legibly. (8060034) -3-
Building and Structural Surveying N4 November 2016 question papers and memos
November 2016
Building and Structural Surveying N4 November 2016 question paper
100 marks · 3 hours · 5 pages · 7 questions
What is in this paper (7 questions)
Q1
Define the following survey terms: 10 marks
Q2
2.1 State FIVE qualities of a good surveyor. (5) 10 marks
Q3
3.1 In mapping, co-ordinates are used to describe a point. 19 marks
Q4
4.1 FIGURE 2 on the ADDENDUM (attached), shows a site with corner posts A, 22 marks
Q5
5.1 A distance of 180 m was measured between two points at an angle of 12 marks
Q6
6.1 FIGURE 1, on the ADDENDUM (attached), shows five different types of 17 marks
Q7
Name 10 apparatus or equipment used in chain surveying. [10] 10 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. ALL the diagrams, sketches and drawings should be large and in good proportion, fully and clearly labelled and done in pencil. Write neatly and legibly. (8060034) -3- T100(E)(N22)T
Building and Structural Surveying N4 November 2014 question papers and memos
November 2014
Building and Structural Surveying N4 November 2014 question paper
The memo for this paper is not available yet.
Building and Structural Surveying N4 November 2013 question papers and memos
November 2013
Building and Structural Surveying N4 November 2013 question paper
The memo for this paper is not available yet.
No papers match. Clear the filters
Questions about these papers
Which years of Building and Structural Surveying N4 November papers are on this page? Papers from 2022, 2020, 2016, 2014, 2013. The newest year is at the top.
How many marks is the Building and Structural Surveying N4 November paper? The paper is usually out of 100 marks and you get 3 hours to write it.
Are the memos included? Yes. 3 of the 5 papers on this page have their marking memo next to the question paper.
