This page has every Engineering Graphics and Designs Grade 12 Term 2 paper we have, from 2021 to 2026: 14 question papers and 14 memos in 48 PDFs. The papers were set by Gauteng and the national DBE. Files are in English and Afrikaans. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Engineering Graphics and Designs Grade 12 Term 2 papers by year

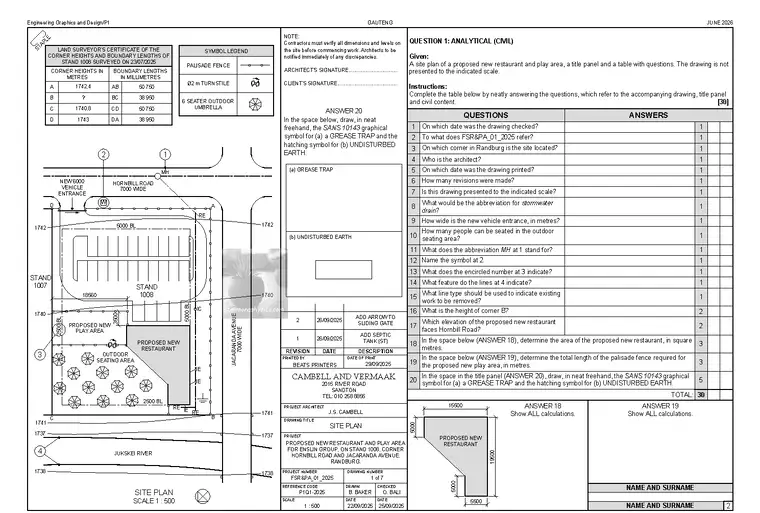

Q1Analytical (Civil)LAND SURVEYOR'S CERTIFICATE OF THE SYMBOL LEGEND the site before commencing work. Architects to be30 marks
Q2Solid Geometry· The front view and top view of a right regular square39 marks
Q3PerspectiveTwo views of an outside area and all the information40 marks
Q4Civil Drawing2 2. KITCHEN - TILES Given:
Instructions to candidates
The question paper consists of FOUR questions.
Answer ALL the questions.
ALL drawings are in first-angle orthographic projection unless otherwise stated.
ALL drawings must be prepared using pencil and instruments, unless otherwise stated.
ALL answers must be drawn accurately and neatly.
ALL the questions must be answered on the QUESTION PAPER, as instructed.
ALL the pages irrespective of whether the question was attempted or not, must be re-stapled in numerical sequence in the TOP LEFT-HAND CORNER ONLY.
Time management is essential in order to complete all the questions.
Print your name and surname in the block provided on every page. JUNE EXAMINATION 10. Any details or dimensions not given must be assumed in good proportion. 2026 FOR OFFICIAL USE ONLY MARKS 1 1 1 QUESTION SIGN MODERATED SIGN RE-MARKING SIGN OBTAINED 2 2 2 1 E
June 2026 Paper 2 (Gauteng)

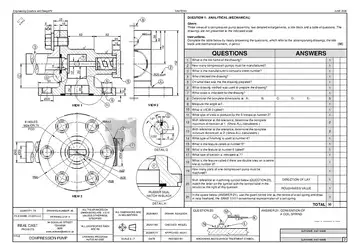

EGD Grade 12 June 2026 Paper 2 (Gauteng) question paper
Q1Analytical (Mechanical)A Three views of a compression pump assembly, two detailed enlargements, a title block and a table of questions. The30 marks
Q2Isometric Drawing• The front view, top view and left view of a slider38 marks
Q3Mechanical Assembly24 7,5 • The exploded isometric drawing of the parts of a drive6 marks
Instructions to candidates
This question paper consists of THREE questions.
Answer ALL the questions.
ALL drawings are in third-angle orthographic projection, unless otherwise stated.
ALL drawings must be prepared using pencil and instruments, unless otherwise stated.
ALL answers must be drawn accurately and neatly.
ALL the questions must be answered on the QUESTION PAPER, as instructed.
ALL the pages, irrespective of whether the question was attempted or not, must be re-stapled in numerical sequence in the TOP LEFT-HAND CORNER ONLY.
Time management is essential in order to complete all the questions.
Print your surname and name in the given block provided on every page.
Any details or dimensions not given must be assumed in good proportion. JUNE EXAMINATION GRADE 12 FOR OFFICIAL USE ONLY 2026 1 1 1 QUESTION MARKS OBTAINED 2 SIGN MODERATED 2 SIGN RE-MARKING 2 SIGN 1 ENGINEERING GRAPHICS AND DESIGN 2 3 PAPER 2 TOTAL 1 6 0 1 6 0
