Mechanical Drawing and Design N6 December 2023 question papers and memos
December 2023

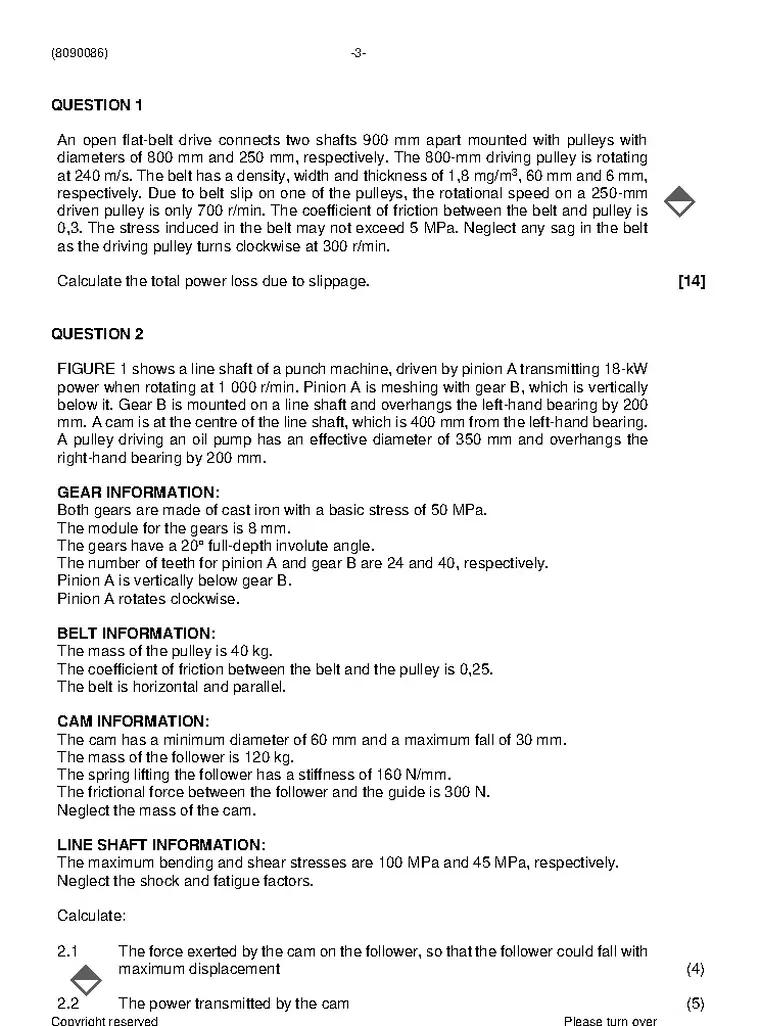

Mechanical Drawing and Design N6 December 2023 question paper
100 marks · 4 hours · 5 pages · 4 questions
What is in this paper (4 questions)
Q1
An open flat-belt drive connects two shafts 900 mm apart mounted with pulleys with 14 marks
Q2
FIGURE 1 shows a line shaft of a punch machine, driven by pinion A transmitting 18-kW 55 marks
Q3
A horizontal shaft with a diameter of 45 mm is rotating at 900 r/min and supported by 18 marks
Q4
A multiplate clutch has four discs on the driving shaft and three on the driven shaft. Each 13 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Use only a blue or black pen. Write neatly and legibly. (8090086) -3-
