Mechanical Drawing and Design N6 August Past Papers and Memos

2018 to 20213 papers6 PDFs
Advertisement

This page has every Mechanical Drawing and Design N6 August paper we have, from 2018 to 2021: 3 question papers and 3 memos in 6 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.

Mechanical Drawing and Design N6 August papers by year

YearExamsPapersPDFs
2021August12
2019August12
2018August12
Advertisement

Mechanical Drawing and Design N6 August 2021 question papers and memos

August 2021

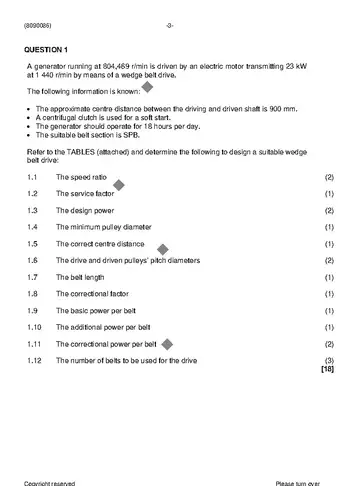

Mechanical Drawing and Design N6 August 2021 question paper, first page of questions
Mechanical Drawing and Design N6 August 2021 question paper

100 marks · 4 hours · 5 pages · 4 questions

What is in this paper (4 questions)
  1. Q1 A generator running at 804,469 r/min is driven by an electric motor transmitting 23 kW 18 marks
  2. Q2 A centrifugal friction clutch has four blocks which slide radially in a spider keyed to the 19 marks
  3. Q3 The FIGURE below shows a line shaft shown supported by two bearings, 1 m apart. 48 marks
  4. Q4 A full journal bearing has a diameter of 80 mm and a length of 120 mm. The bearing 15 marks

Instructions to candidates

  1. Answer all the questions.
  2. Read all the questions carefully.
  3. Number the answers according to the numbering system used in this question paper.
  4. Start each question on a new page.
  5. Use only blue or black pen.
  6. Write neatly and legibly. (8090086) -3-
Advertisement

Mechanical Drawing and Design N6 August 2019 question papers and memos

August 2019

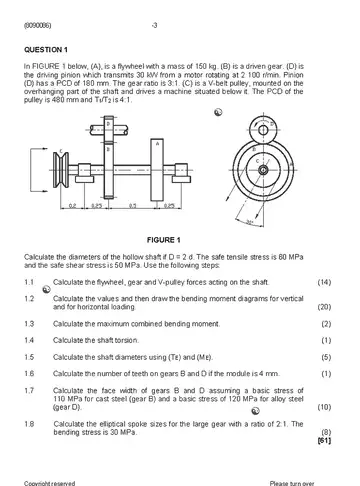

Mechanical Drawing and Design N6 August 2019 question paper, first page of questions
Mechanical Drawing and Design N6 August 2019 question paper

100 marks · 4 hours · 4 pages · 3 questions

What is in this paper (3 questions)
  1. Q1 In FIGURE 1 below, (A), is a flywheel with a mass of 150 kg. (B) is a driven gear. (D) is 61 marks
  2. Q2 A cone clutch shown in FIGURE 2 transmits 28 kW at 1 400 r/min. The large diameter 19 marks
  3. Q3 A hollow cast-iron column has a square cross section with an outside length of 250 mm 20 marks

Instructions to candidates

  1. Answer ALL the questions.
  2. Read ALL the questions carefully.
  3. Number the answers according to the numbering system used in this question paper.
  4. A correct answer is worth only one mark.S how ALL the steps to achieve as many marks as possible. (An incorrect answer which must be carried forward will receive fair consideration.)
  5. All work you do not want to be marked must be clearly crossed out.
  6. Candidates may use personal notes.
  7. Write neatly and legibly. (8090086) -3

Mechanical Drawing and Design N6 August 2018 question papers and memos

August 2018

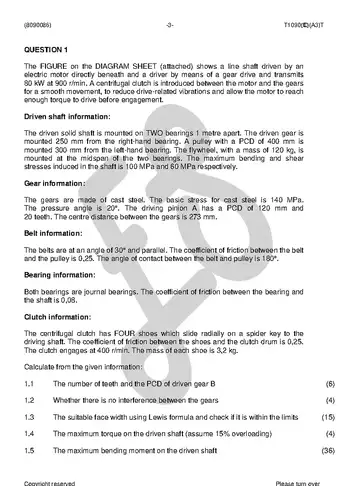

Mechanical Drawing and Design N6 August 2018 question paper, first page of questions
Mechanical Drawing and Design N6 August 2018 question paper

100 marks · 4 hours · 4 pages · 1 questions

What is in this paper (1 questions)
  1. Q1 The FIGURE on the DIAGRAM SHEET (attached) shows a line shaft driven by an 100 marks

Instructions to candidates

  1. Answer ALL the questions.
  2. Read ALL the questions carefully.
  3. Number the answers according to the numbering system used in this question paper.
  4. ALL calculations must have at least THREE steps, e.g. formula, substitution and answer. 2
  5. Use g = 9,81 m/s .
  6. Write neatly and legibly. (8090086) -3- T1090(E)(A3)T
Advertisement

More Mechanical Drawing and Design N6 papers

All Mechanical Drawing and Design N6 past papers and memos

Questions about these papers

Which years of Mechanical Drawing and Design N6 August papers are on this page?

Papers from 2021, 2019, 2018. The newest year is at the top.

How many marks is the Mechanical Drawing and Design N6 August paper?

The paper is usually out of 100 marks and you get 4 hours to write it.

Are the memos included?

Yes. 3 of the 3 papers on this page have their marking memo next to the question paper.
