This page has every Building and Structural Construction N6 April paper we have, from 2018 to 2021: 4 question papers and 3 memos in 7 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Building and Structural Construction N6 April papers by year
Building and Structural Construction N6 April 2021 question papers and memos
April 2021

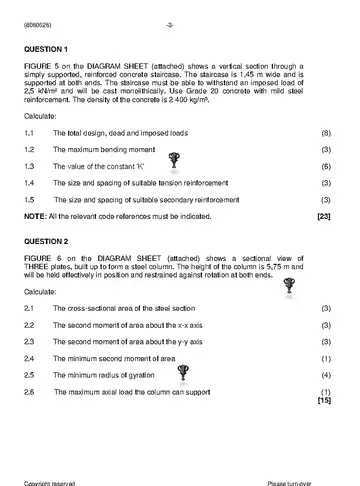

Building and Structural Construction N6 April 2021 question paper
100 marks · 4 hours · 6 pages · 7 questions
What is in this paper (7 questions)
Q1
FIGURE 5 on the DIAGRAM SHEET (attached) shows a vertical section through a 23 marks
Q2
FIGURE 6 on the DIAGRAM SHEET (attached) shows a sectional view of 15 marks
Q3
FIGURE 1 shows a simply supported, reinforced concrete L-beam. The dead load of 11 marks
Q4
4.1 FIGURE 2 shows a rectangular reinforced concrete column. The column is 14 marks
Q5
FIGURE 3 shows a compound beam consisting of a 203 × 203 × 53,5 kg/m H-section 20 marks
Q6
FIGURE 4 shows a typical connection at one of the nodes of a steel roof truss. The 10 marks
Q7
A 533 x 102 x 92,5 kg/m structural steel beam is required to support a point load of 7 marks
Instructions to candidates Answer all the questions Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Start each question on a new page. Draw a line across the page at the end of each answer. All calculations must conform to the relevant SABS/SANS Code of Practice. Indicate all the relevant code/clause references. Use the attached SCHEDULES A, B and C to assist with the answers. Write neatly and legibly. (8060026) -3-
Building and Structural Construction N6 April 2020 question papers and memos
April 2020

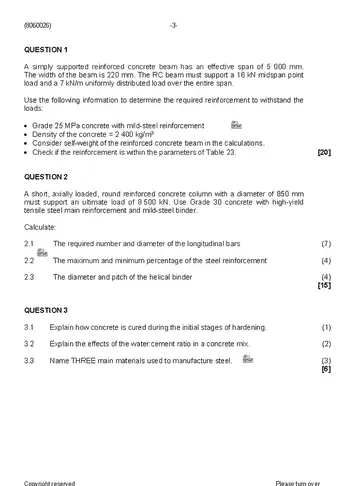

Building and Structural Construction N6 April 2020 question paper
100 marks · 4 hours · 6 pages · 7 questions
What is in this paper (7 questions)
Q1
A simply supported reinforced concrete beam has an effective span of 5 00. 0 mm 20 marks
Q2
A short, axially loaded, round reinforced concrete column with a diameter of 850 mm 15 marks
Q3
3.1 Explain how concrete is cured during the initial stages of hardening. (1) 6 marks
Q4
FIGURE 1 shows two steel plates supporting a 220 × 80 × 29,4 kg/m channel to form a 20 marks
Q5
FIGURE 2 shows an extended part at the foot of a steel truss. 14 marks
Q6
FIGURE 3 shows a fully dimensioned T-beam with a span of 5,0 m. 16 marks
Q7
A 254 × 254 × 73 kg/m H-section parallel flange steel column was used to support a 9 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used i n this question paper. Start each question on a new page. Draw a line after each answer. All calculations must conform to the relevant SABS/SANS Codes of Practice. Indicate all relevant code/clause references. Complement answers with neat sketches. Use the attached SCHEDULES A, B and C to assist with answers. Write neatly and legibly. (8060026) -3-
Building and Structural Construction N6 April 2019 question papers and memos
April 2019

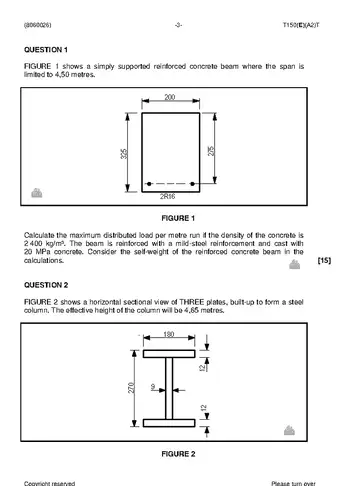

Building and Structural Construction N6 April 2019 question paper
100 marks · 4 hours · 6 pages · 7 questions
The memo for this paper is not available yet.
What is in this paper (7 questions)
Q1
FIGURE 1 shows a simply supported reinforced concrete beam where the span is 15 marks
Q2
FIGURE 2 shows a horizontal sectional view of THREE plates, built-up to form a steel 15 marks
Q3
FIGURE 3 shows a vertical section through a simply supported, reinforced concrete 23 marks
Q4
FIGURE 4 shows a fillet welding joint with a leg size of 8 mm. The maximum stress of 6 marks
Q5
FIGURE 5 shows a simply supported compound beam consisting of a 406 × 178 × 20 marks
Q6
6.1 FIGURE 6 shows a rectangular reinforced concrete column. The column is 14 marks
Q7
7.1 Select TWO ferrous and TWO nonferrous metals used in the construction of 7 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Start each question on a NEW page. Draw a line across the page at the end of each answer. ALL calculations must conform to the relevant SABS/SANS Codes of Practice. Indicate ALL relevant code/clause references. Complement answers with neat sketches. Use the attached SCHEDULES A, B and C to assist with answers. Write neatly and legibly. (8060026) -3- T150(E)(A2)T
Building and Structural Construction N6 April 2018 question papers and memos
April 2018
Building and Structural Construction N6 April 2018 question paper
100 marks · 4 hours · 5 pages · 7 questions
What is in this paper (7 questions)
Q1
FIGURE 1 shows a simply supported, reinforced concrete L-beam. The dead load of 13 marks
Q2
FIGURE 2 on the DIAGRAM SHEET (attached) shows a simply supported steel beam 19 marks
Q3
A circular hollow section is to be used as a steel column. The external cross-sectional 13 marks
Q4
4.1 A short, axially loaded, 450 mm × 550 mm, reinforced-concrete column must 14 marks
Q5
FIGURE 3 on the DIAGRAM SHEET (attached) shows a vertical section through a 23 marks
Q6
6.1 Name TWO methods of producing steel. (2) 4 marks
Q7
FIGURE 4 shows an eccentrically loaded connection consisting of a plate connected to 14 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Start each question on a new page. Rule off on completion of each question. ALL calculations must conform to the relevant SABS/SANS Codes of Practice. Indicate ALL relevant code/clause references. Complement your answers with neat sketches. Use the attached ADDENDA A, B and C to assist with your answers. Write neatly and legibly. (8060026) -3- T150(E)(A3)T
No papers match. Clear the filters
Questions about these papers
Which years of Building and Structural Construction N6 April papers are on this page? Papers from 2021, 2020, 2019, 2018. The newest year is at the top.
How many marks is the Building and Structural Construction N6 April paper? The paper is usually out of 100 marks and you get 4 hours to write it.
Are the memos included? Yes. 3 of the 4 papers on this page have their marking memo next to the question paper.
