This page has every Strength of Materials and Structures N5 November paper we have, from 2014 to 2020: 3 question papers and 3 memos in 8 PDFs. Files are in Afrikaans. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Strength of Materials and Structures N5 November papers by year
Year Exams Papers PDFs
2020 November 1 4 2016 November 1 2 2014 November 1 2
Strength of Materials and Structures N5 November 2020 question papers and memos
November 2020

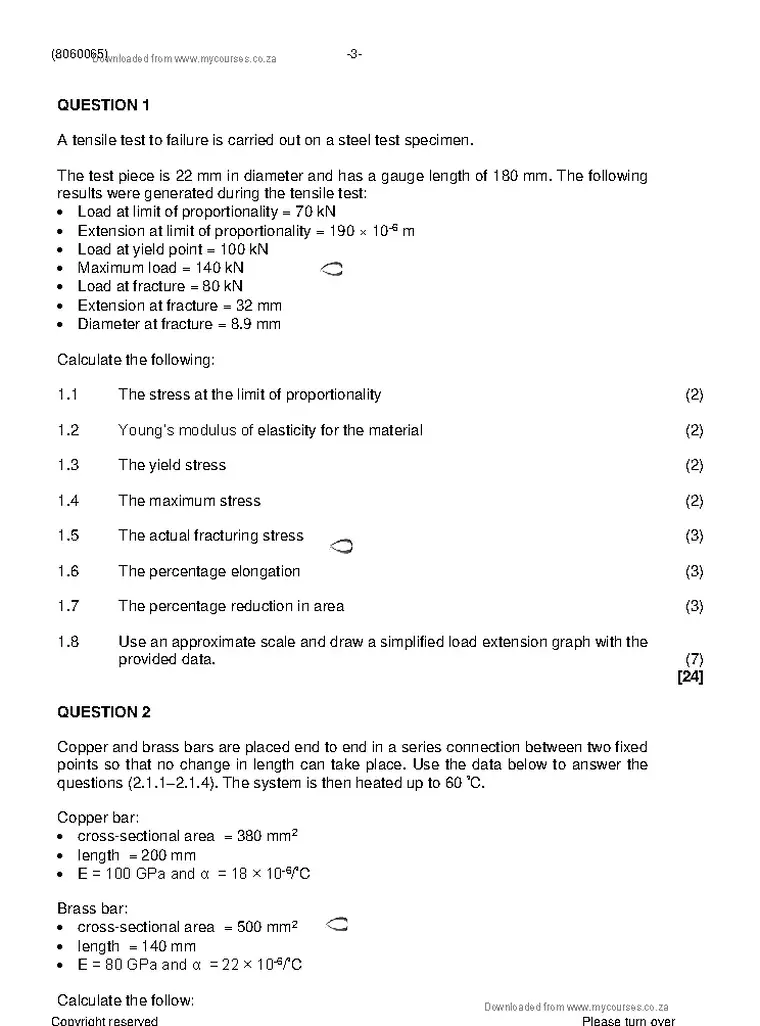

Strength of Materials and Structures N5 November 2020 question paper
100 marks · 3 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
'n Trektoets word vir faling op 'n staaltoetsmonster toegepas. 24 marks
Q2
Koper- en geelkoperstawe word in 'n serieverbinding kop aan kop geplaas tussen twee 19 marks
Q3
'n Keteltrom met 'n wanddikte van 30 mm kan 'n inwendige druk van 3 MPa weerstaan. 10 marks
Q4
'n Staalstaaf en 'n aluminiumstaaf is styf gekoppel, vorm 'n serieverbinding en kan 25 marks
Q5
'n Hol staalkolom waarvan al twee ente vasgepen is, word aan 'n las van 280 kN 15 marks
Q6
Noem SEWE toetse waarmee die vermoëns van metaal gemeet kan word. [7] 7 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Start each question on a new page. Write neatly and legibly. (8060065) -3-
Strength of Materials and Structures N5 November 2016 question papers and memos
November 2016
Strength of Materials and Structures N5 November 2016 question paper
100 marks · 3 hours · 5 pages · 8 questions
What is in this paper (8 questions)
Q1
The following results were obtained by means of a tensile test on a mild-steel 10 marks
Q2
A steel rod 22 mm in diameter is provided with a screw thread on each end and also 10 marks
Q3
A compound bar consists of a steel pipe with a cross-sectional area of 1 480 mm2 and 10 marks
Q4
A load of 95 N falls through a height of 200 mm onto a collar which is attached to the 13 marks
Q5
A solid shaft of 30 mm in diameter and a length of 450 mm is to transmit power at 10 marks
Q6
A cast-iron column is 5,4 m high and has an inside diameter of 18 mm and is 98 mm 10 marks
Q7
FIGURE 2, DIAGRAM SHEET 2 (attached), shows a shear-force diagram of a certain 25 marks
Q8
A roof truss is loaded as shown in FIGURE 3, DIAGRAM SHEET 3 (attached). 12 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Write neatly and legibly. (8060065) -3- T1300(E)(N24)T
Strength of Materials and Structures N5 November 2014 question papers and memos
November 2014

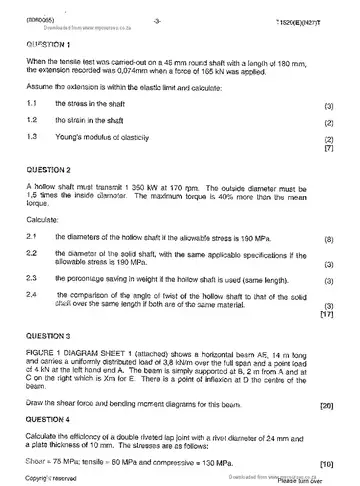

Strength of Materials and Structures N5 November 2014 question paper
No papers match. Clear the filters
Questions about these papers
Which years of Strength of Materials and Structures N5 November papers are on this page? Papers from 2020, 2016, 2014. The newest year is at the top.
How many marks is the Strength of Materials and Structures N5 November paper? The paper is usually out of 100 marks and you get 3 hours to write it.
Are the memos included? Yes. 3 of the 3 papers on this page have their marking memo next to the question paper.
