This page has every Strength of Materials and Structures N5 August paper we have, from 2018 to 2021: 3 question papers and 3 memos in 12 PDFs. Files are in Afrikaans. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Strength of Materials and Structures N5 August papers by year
Strength of Materials and Structures N5 August 2021 question papers and memos
August 2021
Strength of Materials and Structures N5 August 2021 question paper
100 marks · 3 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
After a failure seen on a steering system tie rod, the manufacturers decided to perform 30 marks
Q2
2.1 List FIVE possible causes of unequal settlement in foundations. (6) 14 marks
Q3
FIGURE 2 shows a propped cantilever. Draw the shear force and the bending moment 17 marks
Q4
The connecting rod in FIGURE 3 is used for a two-stroke petrol engine. The length of 13 marks
Q5
A solid shaft with a diameter of 215 mm rotates at 400 r/min and the maximum shear 14 marks
Q6
6.1 Name SIX possible tests that can be carried out to determine the different 12 marks
Instructions to candidates Read all the questions carefully. Answer all the questions. Number the answers according to the numbering system used in this question paper. Start each question on a new page. Show all the calculation steps where calculations should be done. Sketches must be large, neat and fully labelled. Write neatly and legibly. (8060065) -3-
Strength of Materials and Structures N5 August 2019 question papers and memos
August 2019

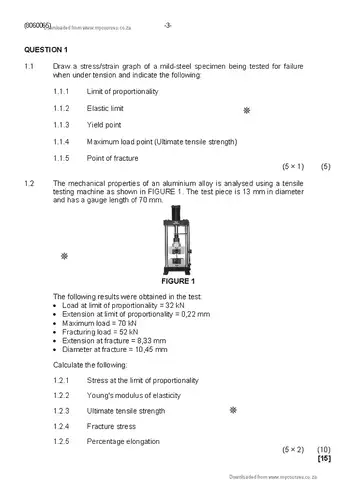

Strength of Materials and Structures N5 August 2019 question paper
100 marks · 3 hours · 7 pages · 6 questions
What is in this paper (6 questions)
Q1
1.1 Draw a stress/strain graph of a mdi-lsteel specimen being tested for failure 15 marks
Q2
Study the double-riveted butt joint with two cover straps in FIGURE 2. 14 marks
Q3
A solid aluminium rod is enclosed by a hollow copper cylinder. The diameter of the 19 marks
Q4
FIGURE 3 shows a propped cantilever witth wo point loads and one uniformly 15 marks
Q5
A built-up beam is welded together as shown in FIGURE 4 below. The beam is simply 29 marks
Q6
6.1 Graphically determine the magnitude and type of force acting in the following 8 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Sketches must be large, neat and fully labelled. Show ALL the calculations where necessary. Write neatly and legibly. (8060065) -3-
Strength of Materials and Structures N5 August 2018 question papers and memos
August 2018

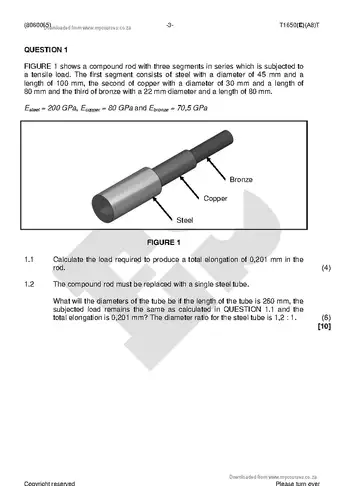

Strength of Materials and Structures N5 August 2018 question paper
