This page has every Mechanotechnics N5 April paper we have, from 2016 to 2021: 5 question papers and 4 memos in 14 PDFs. Files are in Afrikaans. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Mechanotechnics N5 April papers by year
Mechanotechnics N5 April 2021 question papers and memos
April 2021

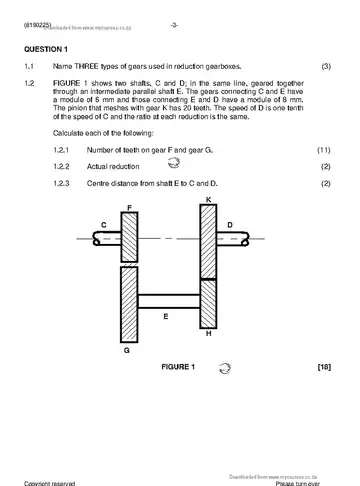

Mechanotechnics N5 April 2021 question paper
100 marks · 3 hours · 6 pages · 6 questions
What is in this paper (6 questions)
Q1
1.1 Name THREE types of gears used in reduction gearboxes. (3) 18 marks
Q2
A conveyor belt delivers 110 ton of crushed stones per hour to a storage bin. 17 marks
Q3
3.1 List FOUR safety aspects to consider in the design of the driving gear of 18 marks
Q4
A bucket elevator is used to transport coal. The centre distance between the head and 16 marks
Q5
A locomotive with a mass of 100 ton ascends an incline of 0,8% at a constant speed. 18 marks
Q6
6.1 What is the function of a flywheel in a rock crusher machine? (1) 13 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Write neatly and legibly. (8190225) -3-
Mechanotechnics N5 April 2020 question papers and memos
April 2020
Mechanotechnics N5 April 2020 question paper
100 marks · 3 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
In the epicyclic gear train shown below gear B has 140 teeth externally and 100 teeth 20 marks
Q2
2.1 State THREE common problemrseg arding bucket elevators and bucket 16 marks
Q3
3.1 3.1.1 Describe a pineapple roller. (1) 18 marks
Q4
The cage of a goods elevator has a mass of 450 kg and hoists a mass of 650 kg. The 18 marks
Q5
A locomotive with a mass of 100 ton hauls a truck with a mass of 500 ton up a uniform 18 marks
Q6
A flywheel initially at rest is subjected to a constant angular acceleration of 1,8 rad/s 10 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Start each section on a new page. Write neatly and legibly. (8190225) -3-
Mechanotechnics N5 April 2019 question papers and memos
April 2019
Mechanotechnics N5 April 2019 question paper
100 marks · 3 hours · 5 pages · 6 questions
The memo for this paper is not available yet.
What is in this paper (6 questions)
Q1
1.1 Noem DRIE soorte ratte wat gebruik word vir reduksieratkaste. (3) 18 marks
Q2
2.1 Noem VIER voorbeelde van materiale wat deur pypvervoerders ('pipe 17 marks
Q3
3.1 Noem VIER voordele van kabelsweefbane bo ander vervoermiddele. (4) 18 marks
Q4
4.1 Noem VIER spesifikasies van toue. (4) 17 marks
Q5
5.1 'n Lokomotief beweeg teen 40 km/h op 'n gelyk spoor en versnel eenvormig 16 marks
Q6
6.1 'n Vliegwiel het 'n massa van 1 400 kg en 'n omwentelingstraal van 820 mm. 14 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Sketches must be large, neat and fully labelled Write neatly and legibly. (8190225) -3-
Mechanotechnics N5 April 2018 question papers and memos
April 2018
Mechanotechnics N5 April 2018 question paper
100 marks · 3 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
Kringkabelvervoer ('Endless rope haulage') is nodig om 800 ton gebreekterotsklip per 18 marks
Q2
'n Bakhyser wat gebruik word om steenkool te vervoer, het die volgende 18 marks
Q3
3.1 Bereken die wringkrag wat nodig is om die spoed van 'n vliegwiel met 'n 16 marks
Q4
'n Vervoerband lewer 120 ton gebreekte klip per uur in 'n stoorbak. Die afstand tussen 17 marks
Q5
'n Elektriese lokomotief met 'n massa van 150 ton, sleep trokke met 'n massa van 16 marks
Q6
6.1 Noem DRIE redes vir die plasing van die dryfmasjien van 'n goedere hysbak 15 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Sketches must be large, neat and fully labelled. Write neatly and legibly. (8190225) -3- T1110(E)(A10)T
Mechanotechnics N5 April 2016 question papers and memos
April 2016
Mechanotechnics N5 April 2016 question paper
100 marks · 3 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
In the epicyclic gear train shown in FIGURE 1, DIAGRAM SHEET 1 (attached), gear B 20 marks
Q2
The thickness of a 4-ply leather belt is 16 mm and it transmits power from a pulley that 18 marks
Q3
3.1 There are three main types of bucket elevators, each of which has a particular 17 marks
Q4
4.1 Discuss the operation of a dead-weight tensioning device as used with rope 16 marks
Q5
5.1 Goods elevators are constructed for the purpose of moving heavy loads. 17 marks
Q6
A flywheel, initially at rest, is subject to a constant angular acceleration of 3 rads/s2 for 12 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Write neatly and legibly. (8190225) -3- T1050(E)(A8)T
No papers match. Clear the filters
Questions about these papers
Which years of Mechanotechnics N5 April papers are on this page? Papers from 2021, 2020, 2019, 2018, 2016. The newest year is at the top.
How many marks is the Mechanotechnics N5 April paper? The paper is usually out of 100 marks and you get 3 hours to write it.
Are the memos included? Yes. 4 of the 5 papers on this page have their marking memo next to the question paper.
