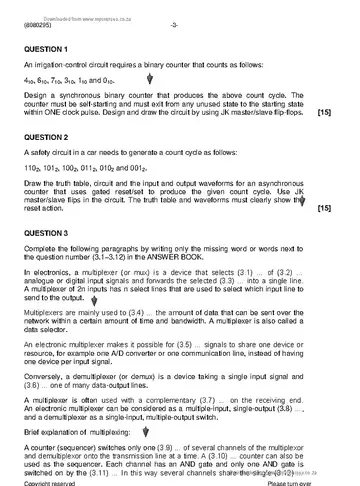

Q1'n Besproeiingskontrolestroombaan vereis 'n binêre teller wat soos volg tel:15 marks
Q2'n Veiligheidstroombaan in 'n motor moet die volgende telsiklus ontwikkel:15 marks
Q3Voltooi die volgende paragrawe deur die ontbrekende woord of woorde langs die12 marks
Q44.1 Watter twee 4-bis- binêre datakodes (getalle) kan as sowel Johnson- as ring-13 marks
Q55.1 Teken 'n blokdiagram van 'n tipiese logikaverdeler. (8)15 marks
Q6Raadpleeg die lys geheuetipes hier onder en skryf slegs die letter (A–G) langs die15 marks
Q77.1 Toon aan of die volgende stellings WAAR of ONWAAR is deur slegs 'Waar' of15 marks
Instructions to candidates
Answer all the questions.
Read all the questions carefully.
Number the answers according to the numbering system used in this question paper.
Fully label all circuits.
Draw binary registers with the most significant bit (MSB) flip-flop on the left and the least significant bit (LSB) flip-flop on the right.
Draw waveforms with the clock input on top followed by the LSB flip-flop output below the clock input and the MSB flip-flop output as the last output waveform on the bottom.
Write neatly and legibly. (8080295) -3-
Advertisement
Logic Systems N5 April 2020 question papers and memos

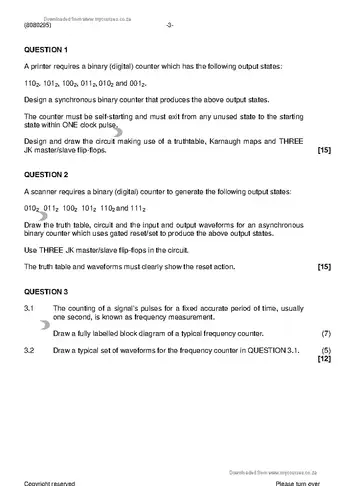

Q1'n Drukker vereis 'n binêre (digitale) teller, met die volgende leweringtoestande:15 marks
