This page has every Mechanotechnics N4 November paper we have, from 2016 to 2023: 3 question papers and 3 memos in 6 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Mechanotechnics N4 November papers by year
Year Exams Papers PDFs
2023 November 1 2 2022 November 1 2 2016 November 1 2
Mechanotechnics N4 November 2023 question papers and memos
November 2023

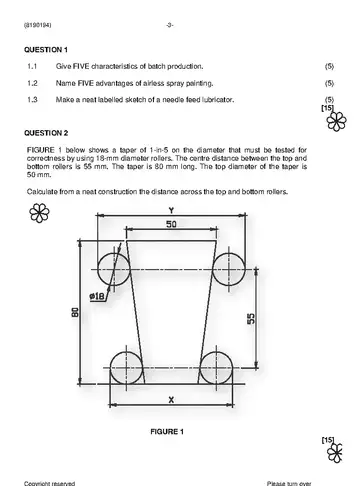

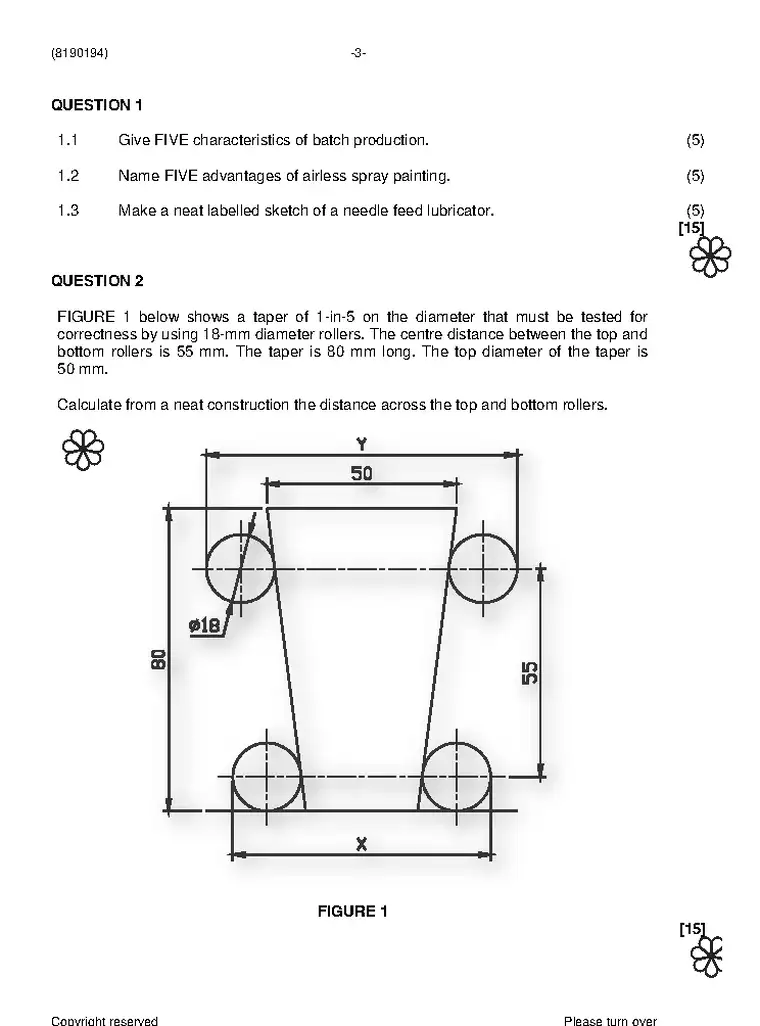

Mechanotechnics N4 November 2023 question paper
100 marks · 3 hours · 6 pages · 7 questions
What is in this paper (7 questions)
Q1
1.1 Give FIVE characteristics of batch production. (5) 15 marks
Q2
FIGURE 1 below shows a taper of 1-in-5 on the diameter that must be tested for 15 marks
Q3
An epicyclic gear train shown in FIGURE 2 below consists of annulus A having 60 teeth, 15 marks
Q4
A belt drive consists of three V-belts on grooved pulleys of 40°. The cross-sectional area 5 marks
Q5
5.1 A pipeline conveying water is equipped with a Venturi meter with the following 20 marks
Q6
6.1 Name FOUR mean fluctuating loads in bearings. (4) 15 marks
Q7
7.1 A shaft with diameter 80 mm rotates at 400 r/min within a bearing. The 15 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Use only a blue or black pen. Write neatly and legibly. (8190194) -3-
Mechanotechnics N4 November 2022 question papers and memos
November 2022

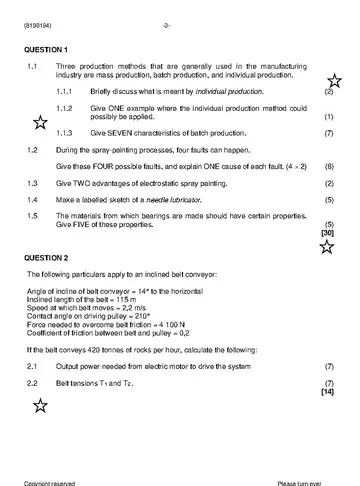

Mechanotechnics N4 November 2022 question paper
100 marks · 3 hours · 6 pages · 6 questions
What is in this paper (6 questions)
Q1
1.1 Three production methods that are generally used in the manufacturing 30 marks
Q2
The following particulars apply to an inclined belt conveyor: 14 marks
Q3
3.1 A drill with a diameter of 20 mm is used to drill a hole in a workpiece at 14 marks
Q4
4.1 Study FIGURE 1 below, which shows the dimensions of an internal dovetail. 14 marks
Q5
5.1 Study FIGURE 3 below, which shows a simple epicyclic gear drive. It comprises 14 marks
Q6
6.1 FIGURE 4 below shows two reservoirs, A and B. The pipe is 3,2 km long. The 14 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Start each section on a new page. Use a blue or black pen. Use g = 9,81 m/s. Write neatly and legibly. (8190194) -3-
Mechanotechnics N4 November 2016 question papers and memos
November 2016

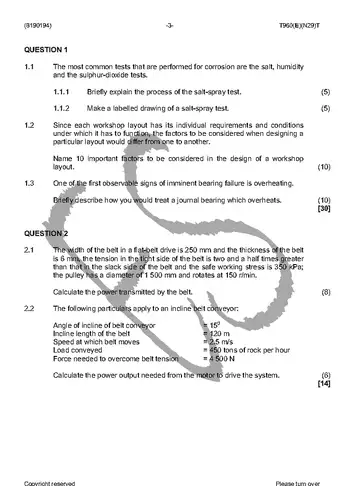

Mechanotechnics N4 November 2016 question paper
100 marks · 3 hours · 6 pages · 6 questions
What is in this paper (6 questions)
Q1
1.1 The most common tests that are performed for corrosion are the salt, humidity 30 marks
Q2
2.1 The width of the belt in a flat-belt drive is 250 mm and the thickness of the belt 14 marks
Q3
3.1 A shaft, 250 mm in diameter is revolving in a bearing and exerting a force of 14 marks
Q4
FIGURE 1 below shows a taper of 1-in-5 on the diameter that must be tested for 14 marks
Q5
An epicyclical gear train is shown in FIGURE 2. 14 marks
Q6
6.1 A horizontal pipe line with a diameter of 90 mm conveys water at the rate of 14 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Candidates are advised to produce good sketches. ALL the work done in pencil (excluding sketches, drawings and diagrams) will be regarded as rough work and will NOT be marked. Write neatly and legibly. (8190194) -3- T960(E)(N29)T
No papers match. Clear the filters
Questions about these papers
Which years of Mechanotechnics N4 November papers are on this page? Papers from 2023, 2022, 2016. The newest year is at the top.
How many marks is the Mechanotechnics N4 November paper? The paper is usually out of 100 marks and you get 3 hours to write it.
Are the memos included? Yes. 3 of the 3 papers on this page have their marking memo next to the question paper.
