Engineering Drawing N3 November 2022 question papers and memos
November 2022

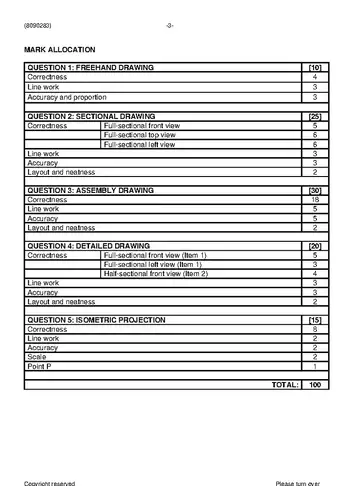

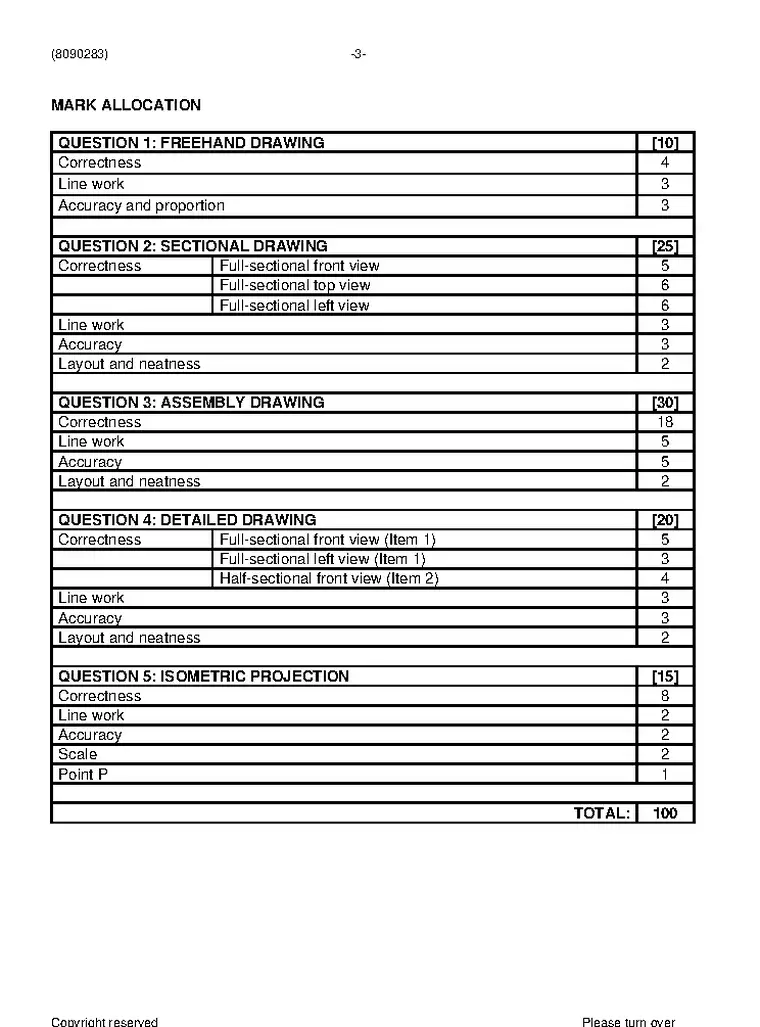

Engineering Drawing N3 November 2022 question paper
100 marks · 4 hours · 10 pages · 5 questions
What is in this paper (5 questions)
Q1
Freehand Drawing Accuracy and proportion 3
Q2
Sectional Drawing Correctness Full-sectional front view 5
Q3
Assembly Drawing Layout and neatness 2
Q4
Detailed Drawing Correctness Full-sectional front view (Item 1) 5
Q5
Isometric Projection FIGURE 1 shows a full-sectional view of a universal coupling. 15 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. Only the candidate information on the drawing sheet must be done in ink. All other drawing work must be done in pencil. Use a radius curve stencil to draw smaller arcs. Unspecified radii must be R3. A balanced layout is very important, and candidates will be penalised for poor planning. All drawing work must conform to the latest SANS 10111 Code of Practice for Engineering Drawing. Work neatly. (8090283) -3- MARK ALLOCATION
Engineering Drawing N3 November 2020 question papers and memos
November 2020
Engineering Drawing N3 November 2020 question paper
100 marks · 4 hours · 10 pages · 5 questions
What is in this paper (5 questions)
Q1
Vryhandtekening Akkuraatheid en proporsie (3) 10 marks
Q2
Deursneetekening 2.1 Korrektheid – voldeursnee vooraansig (6) 25 marks
Q3
Monteertekening Uitleg en netheid (2) 30 marks
Q4
Gedetailleerde Tekening 4.1 4.1.1 Korrektheid – voldeursnee vooraansig (Item 1) (4) 20 marks
Q5
Perspektieftekening FIGUUR 1 toon ’n deursnee-aansig van ’n komponent. 15 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. Write only the candidate information on the DRAWING SHEET in ink. Do all other drawing work in pencil. Use a radius curve stencil to draw smaller arcs. Unspecified radii must be R3. All drawing work must conform to the latest SANS 10111 Code of Practice for Engineering Drawing. A balanced layout is very important and candidates will be penalised for poor planning. Work neatly. (8090283) -3- MARK ALLOCATION
