This page has every Engineering Drawing N2 April paper we have, from 2018 to 2021: 4 question papers and 3 memos in 12 PDFs. Files are in Afrikaans. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Engineering Drawing N2 April papers by year
Topics that come up most in Engineering Drawing N2 April
Counted from the questions in the papers on this page: how many papers each topic appears in, and its average marks.
Topic Papers Average marks
Eerstehoekse Ortografiese Projeksie 2 25 Skroefdrade 2 12 First-Angle Orthographic Projection 1 23 Third-Angle Orthographic Projection and Machine Symbols 1 23 Derdehoekse Ortografiese Projeksie en Masjien 1 23 Derdehoekse Ortografiese Projeksie en Masjiensimbole 1 20 Drade, Afkortings, Sweiswerk 1 17 Fundamentals of Engineering Drawing, Machine Symbols and Welding 1 15 Masjienskroewe, Rekenaargesteunde Tekenwerk en Elektriese Toebehore 1 15 Isometric 1 14
Engineering Drawing N2 April 2021 question papers and memos
April 2021
Engineering Drawing N2 April 2021 question paper
100 marks · 4 hours · 11 pages · 6 questions
What is in this paper (6 questions)
Q1
Grondslae van Ingenieurstekene, Elektriese Monterings en Sweissimbole OPMERKING: Beantwoord hierdie vraag op die aangehegte ANTWOORDBLAD en 15 marks
Q2
Skroefdrade FIGUUR 1 toon 'n vooraansig en 'n regsaansig van 'n sokkopbout ('socket-head bolt'). 10 marks
Q3
Eerstehoekse Ortografiese Projeksie FIGUUR 2, op die volgende bladsy, toon die primêre aansigte in eerste-hoekse 20 marks
Q4
Isometrie FIGUUR 3 toon twee aansigte van 'n gietstuk in derdehoekse ortografiese projeksie. 15 marks
Q5
Interpenetrasie FIGUUR 4 toon twee aansigte van 'n silinder en 'n gelyksydige driehoek sonder 13 marks
Q6
Derdehoekse Ortografiese Projeksie en Masjieneersimbole FIGUUR 5 op die volgende bladsy toon twee aansigte van 'n vierkant-tot-rond flens. 15 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. Make all drawings neatly using your own drawing instruments unless otherwise specified. Only the candidate information on the drawing sheet must be done in ink. ALL other drawing work must be done in pencil. All drawings must conform to the latest SANS 10111 Codes of Practice. Unspecified radii must be R3. A balanced layout is very important and candidates will be penalised for poor planning. Write neatly and legibly (8090272) -3-
Engineering Drawing N2 April 2020 question papers and memos
April 2020

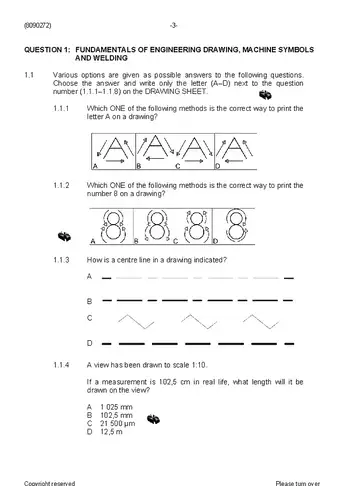

Engineering Drawing N2 April 2020 question paper
100 marks · 4 hours · 11 pages · 6 questions
What is in this paper (6 questions)
Q1
Fundamentals of Engineering Drawing, Machine Symbols and Welding 1.1 Various options are given as possible answers to the follgow quesin tions. 15 marks
Q2
Screw Threads FIGURE 2 shows a front view of a square-threaded cap. 12 marks
Q3
First-Angle Orthographic Projection FIGURE 3 on the next page shows two views of a support-arm connector. 23 marks
Q4
Isometric FIGURE 4 shows two views of a casting drawn in third-angle orthographic projection. 14 marks
Q5
Interpenetration FIGURE 5 shows two views of a T-end without the interpenetration lines in third-angle 13 marks
Q6
Third-Angle Orthographic Projection and Machine Symbols FIGURE 6 on the next page shows a fronrtig ahnt vd iew of a cable support i n 23 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used i n this question paper. Make all drawings neatly with drawing instruments unless otherwise specified. Use your own drawing instruments. Do all drawing and written work ipencn il. Use a black or blue pen for candidate information. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. Unspecified radii must be R3. All drawings must conform to the latest SANS 10111 Code of Practice for Engineering Drawing. A balanced layout is very important and candidates will be penalised for poor planning. Work neatly. (8090272) -3-
Engineering Drawing N2 April 2019 question papers and memos
April 2019
Engineering Drawing N2 April 2019 question paper
100 marks · 4 hours · 13 pages · 6 questions
The memo for this paper is not available yet.
What is in this paper (6 questions)
Q1
Masjienskroewe, Rekenaargesteunde Tekenwerk en Elektriese Toebehore LET WEL: Beantwoord hierdie vraag direk op die TEKENBLAD en NIE in 'n 15 marks
Q2
Skroefdrade Op FIGUUR 2 word 'n deursneevooraansig en -boaansig van 'n spesiaal 12 marks
Q3
Eerstehoekse Ortografiese Projeksie Op FIGUUR 3 word twee aansigte van 'n skroefdomkrag en dopskroef getoon. Die 24 marks
Q4
Isometriese Tekeninge Op FIGUUR 4 word TWEE aansigte getoon van 'n masjienkomponent wat in 'n 13 marks
Q5
Deurdringing ('Interpenetration') Op FIGUUR 5 word twee aansigte van 'n sirkelvormige pyp en 'n 13 marks
Q6
Derdehoekse Ortografiese Projeksie en Masjien Op FIGUUR 6 op die volgende bladsy word 'n vooraansig en 'n regteraansig van 'n 23 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Draw ALL drawings neatly using drawing instruments unless otherwise specified. Candidates may only use their own drawing instruments. ALL drawings must conform to the latest SANS Codes of Practice. Draw a 15 mm border on both sides of the DRAWING SHEET. Unspecified radii must be R3. Only the candidate information on the DRAWING SHEET must be done in ink. ALL other drawings and written work, must be done in pencil. Use both sides of the DRAWING SHEET. A balanced layout is very important and candidates will be penalised for poor planning. Work neatly. (8090272) -3-
Engineering Drawing N2 April 2018 question papers and memos
April 2018
Engineering Drawing N2 April 2018 question paper
100 marks · 4 hours · 9 pages · 6 questions
What is in this paper (6 questions)
Q1
Drade, Afkortings, Sweiswerk LET WEL: Hierdie vraag moet direk op die TEKENBLAD beantwoord word, en NIE in 'n 17 marks
Q2
Skroefdrade FIGUUR 1 dui 'n gemasjineerde as met 'n ronde skouer op een punt aan. 12 marks
Q3
Eerstehoekse Ortografiese Projeksie FIGUUR 2 dui 'n voor- en linkeraansig van 'n askloukop in eerstehoekse ortografiese 25 marks
Q4
Isometries FIGUUR 3 gee TWEE aansigte van 'n gietstuk wat in eerstehoekse ortografiese 14 marks
Q5
Interpenetrasie FIGUUR 4 wys die voor- en boaansigte van 'n silinder en 'n vierkantige pyp wat met 12 marks
Q6
Derdehoekse Ortografiese Projeksie en Masjiensimbole FIGUUR 5 wys TWEE aansigte van 'n klampskakel. 20 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. ALL drawings must be drawn neatly using drawing instruments, unless otherwise specified. ALL drawings must conform to the latest SANS Codes of Practice. A 15 mm border must be drawn on both sides of the paper. Unspecified radii must be R3. Candidates may use only their own drawing instruments. Write neatly and legibly. ALL drawing and written work, including candidate information, must be done in pencil. Use BOTH sides of the drawing sheet. A balanced layout is very important and candidates will be penalised for poor planning. (8090272) -3- T580(E)(M22)T
No papers match. Clear the filters
Questions about these papers
Which years of Engineering Drawing N2 April papers are on this page? Papers from 2021, 2020, 2019, 2018. The newest year is at the top.
How many marks is the Engineering Drawing N2 April paper? The paper is usually out of 100 marks and you get 4 hours to write it.
Are the memos included? Yes. 3 of the 4 papers on this page have their marking memo next to the question paper.
Which topics come up most in these papers? Eerstehoekse ortografiese projeksie, skroefdrade and first-angle orthographic projection, based on 2 papers on this page.
