This page has every Plating and Structural Steel Drawing N1 April paper we have, from 2018 to 2021: 4 question papers and 3 memos in 7 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Plating and Structural Steel Drawing N1 April papers by year
Plating and Structural Steel Drawing N1 April 2021 question papers and memos
April 2021
Plating and Structural Steel Drawing N1 April 2021 question paper
100 marks · 3 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
FIGURE 1, DIAGRAM SHEET 1 shows the front view of a solid cone with a 60° cut, in 15 marks
Q2
FIGURE 2, DIAGRAM SHEET 1 shows a Y-piece made of TWO oblique pipes with 15 marks
Q3
FIGURE 3, DIAGRAM SHEET 1 shows TWO views of an oblique T-piece made up of a 20 marks
Q4
FIGURE 4, DIAGRAM SHEET 2 shows a cone with a 30° cut. The cone will be part of 15 marks
Q5
FIGURE 5, DIAGRAM SHEET 2 shows TWO views of a square-to-round transition 20 marks
Q6
FIGURE 6, DIAGRAM SHEET 2 shows TWO views of a cone connecting into a round 15 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. All construction lines must be shown. Add all the dimensions and descriptions unless otherwise stated. Only ONE drawing sheet may be used. Use both sides of the drawing sheet. A 15 mm border must be drawn on both sides of the drawing sheet. Marks will be allocated for neatness. (8090091) -3-
Plating and Structural Steel Drawing N1 April 2020 question papers and memos
April 2020
Plating and Structural Steel Drawing N1 April 2020 question paper
100 marks · 4 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
FIGURE 1, DIAGRAM SHEET 1 (attached), shows the front view of a solid cone with a 15 marks
Q2
FIGURE 2, DIAGRAM SHEET 1 (attached), shows a 240 mm diameter right pipe cut at 15 marks
Q3
FIGURE 3, DIAGRAM SHEET 1 (attached), shows the front view and an incomplete 15 marks
Q4
FIGURE 4, DIAGRAM SHEET 2 (attached), shows an elbow made frtowom right 15 marks
Q5
FIGURE 5, DIAGRAM SHEET 2 (attached), shows two views of a squar-eto-round 20 marks
Q6
FIGURE 6, DIAGRAM SHEET 2(attached), shwos the front view of a Y-piece. 20 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used i n this question paper. Show all construction lines. Add all dimensions and descriptions unless stated otherwise. Marks will be allocated for neatness. Use only ONE DRAWING SHEET. Draw on both sides of the DRAWING SHEET. Draw a 15 mm border line on both sides of the DRAWING SHEET. Work neatly. (8090091) -3-
Plating and Structural Steel Drawing N1 April 2019 question papers and memos
April 2019
Plating and Structural Steel Drawing N1 April 2019 question paper
100 marks · 4 hours · 5 pages · 6 questions
The memo for this paper is not available yet.
What is in this paper (6 questions)
Q1
FIGURE 1, DIAGRAM SHEET 1 (attached), shows the front view of a truncated 15 marks
Q2
FIGURE 2, DIAGRAM SHEET 1 (attached), shows the front view of a connection of a 15 marks
Q3
FIGURE 3, DIAGRAM SHEET 1 (attached), show TWO views of an oblique T-piece 20 marks
Q4
FIGURE 4, DIAGRAM SHEET 2 (attached), shows the front view and an incomplete 15 marks
Q5
FIGURE 5, DIAGRAM SHEET 2 (attached), shows the intersection between a right 15 marks
Q6
FIGURE 6, DIAGRAM SHEET 2 (attached), shows TWO views of a 20 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Show ALL construction lines. Add ALL dimensions and descriptions unless stated otherwise. Marks will be allocated for neatness. Use only ONE A2 DRAWING SHEET. Draw on both sides of the A2 DRAWING SHEET. Draw a 15 mm wide border line on both sides of the A2 DRAWING SHEET. Work neatly. (8090091) -3- T1330(E)(M29)T
Plating and Structural Steel Drawing N1 April 2018 question papers and memos
April 2018

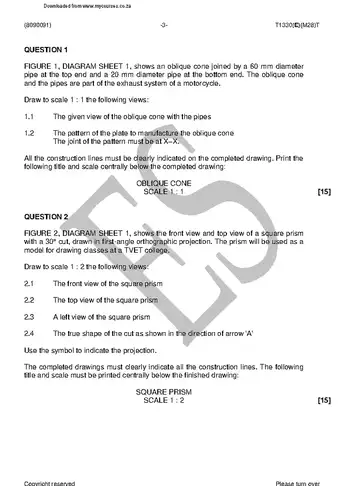

Plating and Structural Steel Drawing N1 April 2018 question paper
100 marks · 4 hours · 5 pages · 6 questions
What is in this paper (6 questions)
Q1
FIGURE 1, DIAGRAM SHEET 1, shows an oblique cone joined by a 60 mm diameter 15 marks
Q2
FIGURE 2, DIAGRAM SHEET 1, shows the front view and top view of a square prism 15 marks
Q3
FIGURE 3, DIAGRAM SHEET 1, shows a 230 mm diameter right pipe cut at both 15 marks
Q4
FIGURE 4, DIAGRAM SHEET 2, shows a front view and an incomplete top view of a 15 marks
Q5
FIGURE 5, DIAGRAM SHEET 2, shows TWO views of a T-piece, consisting of a 20 marks
Q6
FIGURE 6, DIAGRAM SHEET 2, shows two views of a rectangle-to-rectangle 20 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. ALL the construction lines MUST be shown. Add ALL the dimensions and descriptions unless otherwise stated. Only ONE drawing sheet may be used. Draw on both sides of the drawing sheet. A 15 mm wide border line must be drawn on both sides of the drawing sheet. Work neatly. (8090091) -3- T1330(E)(M28)T
