This page has every Fitting and Machining N1 November paper we have, from 2014 to 2023: 5 question papers and 3 memos in 8 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Fitting and Machining N1 November papers by year
Topics that come up most in Fitting and Machining N1 November
Counted from the questions in the papers on this page: how many papers each topic appears in, and its average marks.
Topic Papers Average marks
Metals and Plastics 4 12 Drilling Machines 4 10 Screw Threads 4 6 Hand Tools 4 6 Keys and Keyways 4 6 Occupational Safety 4 5 Fasteners 4 4 Measuring Instruments 3 11 Grinding Machines and Machine Cutting Tools 3 10 Centre Lathe 3 10
Fitting and Machining N1 November 2023 question papers and memos
November 2023

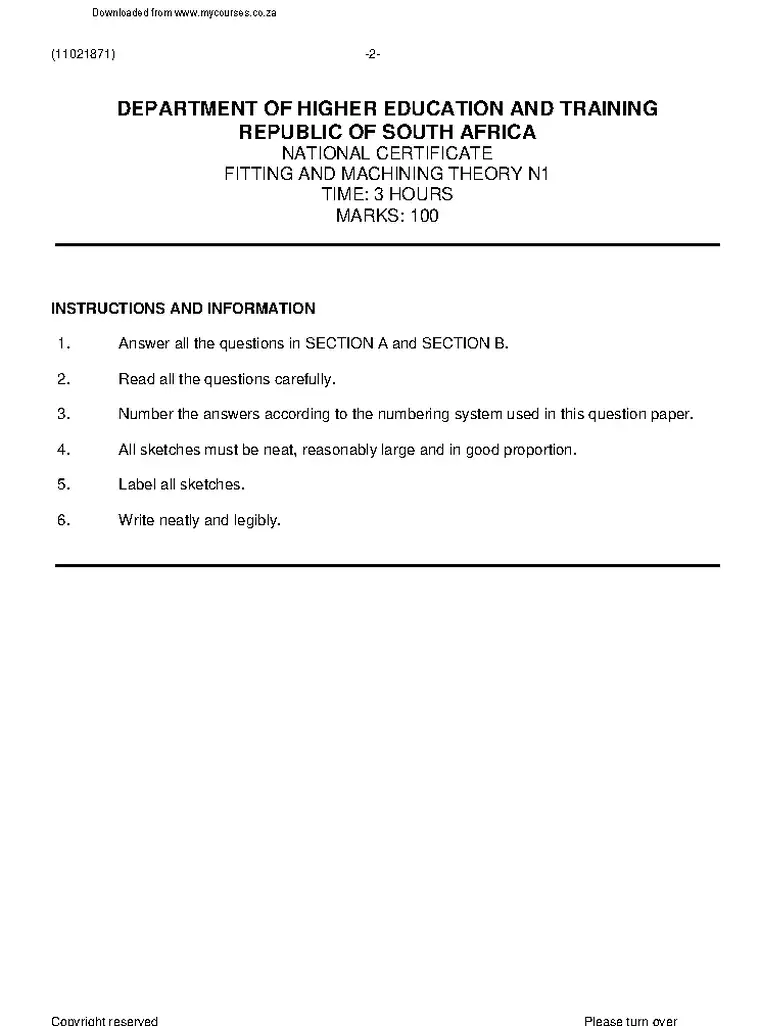

Fitting and Machining N1 November 2023 question paper
100 marks · 3 hours · 8 pages · 13 questions
What is in this paper (13 questions)
Q1
Occupational Safety List FIVE general safety measures to remember when using hand tools. [5] 5 marks
Q2
Measuring Instruments ������ 2.1 A feeler gauge is used to measure small gaps between surfaces. 11 marks
Q3
Screw Threads 3.1 Name TWO instances where an Acme screw thread is used. (2) 6 marks
Q4
Hand Tools 4.1 The heads of soft-faced hammers are made from softer materials than ordinary 6 marks
Q5
Metals and Plastics 5.1 All steels are supplied with different colour codes to identify them. Name the 12 marks
Q6
Marking Off 6.1 A combination set is a versatile tool used by fitters. 5 marks
Q7
Keys and Keyways 7.1 Why is a Woodruff key semi-circular in shape? (2) 6 marks
Q8
Fasteners 8.1 Name THREE types of screws that cut their own thread. (3) 4 marks
Q9
Hand Taps, Stocks, Dies and Reamers 9.1 Name the TWO types of tap wrenches that can be used to fit onto the shank of 5 marks
Q10
Drilling Machines NOTE: Answer all FOUR questions from this section. 10 marks
Q11
Grinding Machines and Machine Cutting Tools 11.1 Every grinding job is different. Therefore, certain factors should be consider 10 marks
Q12
Centre Lathe 12.1 A computerised numerical control lathe is commonly called a CNC lathe. 10 marks
Q13
Milling Machine 13.1 Describe the function of the following milling machine parts: 10 marks
Instructions to candidates Answer all the questions in SECTION A and SECTION B. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. All sketches must be neat, reasonably large and in good proportion. Label all sketches. Write neatly and legibly. (11021871) -3-
Fitting and Machining N1 November 2022 question papers and memos
November 2022
Fitting and Machining N1 November 2022 question paper
100 marks · 3 hours · 7 pages · 13 questions
What is in this paper (13 questions)
Q1
Occupational Safety 1.1 There are regulations with regard to certain situations that the user must report 5 marks
Q2
Measuring Instruments 2.1 FIGURE 1 shows a diagram of a measuring instrument. Answer QUESTIONS 11 marks
Q3
Screw Threads 3.1 State TWO advantages of the following screw threads: 6 marks
Q4
Hand Tools 4.1 Punches assist in different ways in the workshop. 6 marks
Q5
Metals and Plastics 5.1 Heat-treatment processes change the physical properties of a metal. 12 marks
Q6
Marking-Off 6.1 State TWO uses of jenny callipers. (2) 5 marks
Q7
Keys and Keyways 7.1 Name TWO uses of a key in industry. (2) 6 marks
Q8
Fasteners 8.1 Fasteners can be fixed together permanently or temporarily. 4 marks
Q9
Hand Taps, Stocks, Dies and Reamers 9.1 Name ONE purpose of a hand reamer. (1) 5 marks
Q10
Drilling Machines 10.1 The cutting speed of mild steel is 24 metres per minute and the machine runs 10 marks
Q11
Grinding Machines and Machine Cutting Tools 11.1 State the purpose of a left-hand screw thread and a right-hand screw 10 marks
Q12
Centre Lathe 12.1 FIGURE 3 shows a diagram of a section of a tailstock. Name the parts indicated 10 marks
Q13
Milling Machine 13.1 The milling machine is a versatile machine. 10 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Start each section on a new page. Use only a blue or black pen. Write neatly and legibly. (11021871) -3-
Fitting and Machining N1 November 2019 question papers and memos
November 2019
Fitting and Machining N1 November 2019 question paper
100 marks · 3 hours · 9 pages · 13 questions
The memo for this paper is not available yet.
What is in this paper (13 questions)
Q1
Occupational Safety Answer either QUESTION 1.1 OR QUESTION 1.2. 5 marks
Q2
Measuring Instruments 2.1 FIGURE 1 shows a vernier calliper. 11 marks
Q3
Screw Threads 3.1 Define each of the following terms used to describe screw threads and give 6 marks
Q4
Hand Tools 4.1 List THREE types of pliers besides long-nose pliers. (3) 6 marks
Q5
Metals and Plastics 5.1 Name the FOUR elements that make up white metal. (4) 12 marks
Q6
Marking Off FIGURE 2 shows a surface gauge. 5 marks
Q7
Keys and Keyways 7.1 Give TWO uses of a gib-head taper key. (2) 6 marks
Q8
Fasteners 8.1 Explain how a tab washer is used to prevent a nut from working loose. (3) 4 marks
Q9
Hand Taps, Stocks, Dies and Reamers 9.1 Name THREE types of reamers. (3) 5 marks
Q10
Drilling Machines 10.1 Why should a workpiece not be held with one's hands when drilling? (2) 10 marks
Q11
Grinding Machines and Machine Cutting Tools 11.1 Give TWO disadvantages of a Huntington wheel dresser. (2) 10 marks
Q12
Centre Lathes 12.1 Give TWO disadvantages of setting over the tailstock for taper turning on a 10 marks
Q13
Milling Machines 13.1 FIGURE 5 shows a milling machine. 10 marks
Instructions to candidates Answer ALL the questions in SECTION A except at QUESTION 1 where either QUESTION 1.1 OR QUESTION 1.2 must be answered. Answer ALL the questions in SECTION B. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Write neatly and legibly. (11021871) -3-
Fitting and Machining N1 November 2016 question papers and memos
November 2016

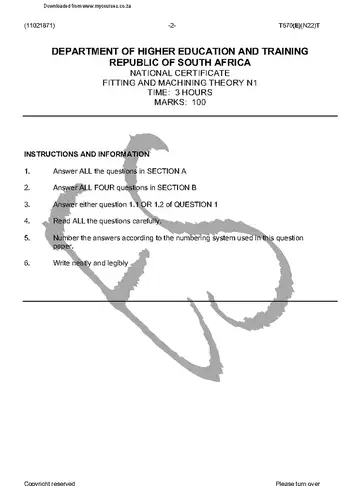

Fitting and Machining N1 November 2016 question paper
100 marks · 3 hours · 9 pages · 13 questions
What is in this paper (13 questions)
Q1
Occupational Safety 4. Read ALL the questions carefully. 5 marks
Q2
Measuring Instruments 2.1 Make a neat drawing of only the following measuring instruments with at least 11 marks
Q3
Screw Threads 3.1 Write down the FOUR screw thread-terms listed between (3.1.1–3.1.4) and 7 marks
Q4
Hand Tools 4.1 List the question numbers from 4.1.1–4.1.5 and name the hammers as listed 5 marks
Q5
Metals and Plastics 5.1 Name THREE types of carbon steel. (3) 12 marks
Q6
Marking Off 6.1 Define the following terms when interpreting a drawing during marking off 5 marks
Q7
Keys and Keyways 7.1 Make a neat sketch of the following types of keys: 6 marks
Q8
Fasteners Identify the different types of fasteners in FIGURE 2 by writing the answers next to the 5 marks
Q9
Hand Taps, Stocks and Dies and Reamers 9.1 Two Ø12 holes were made, one was drilled and the other one was reamed. 4 marks
Q10
Drilling Machines 10.1 Name the THREE main types of drilling machines commonly found in an 10 marks
Q11
Grinders and Machine Cutting Tools 11.1 Name FOUR main components of a pedestal grinding machine. (4) 10 marks
Q12
Centre Lathe Identify the lathe parts (components) in FIGURE 4 and list them from 12.1.1 - 12.1.6 in 10 marks
Q13
Milling Machine 13.1 State FOUR safety precautions while working on a milling machine. (4) 10 marks
Instructions to candidates Answer ALL the questions in SECTION A Answer ALL FOUR questions in SECTION B Answer either question 1.1 OR 1.2 of QUESTION 1 Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Write neatly and legibly (11021871) -3- T570(E)(N22)T
Fitting and Machining N1 November 2014 question papers and memos
November 2014

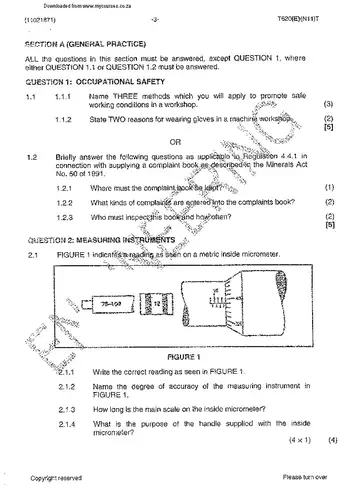

Fitting and Machining N1 November 2014 question paper
21 pages
The memo for this paper is not available yet.
No papers match. Clear the filters
Questions about these papers
Which years of Fitting and Machining N1 November papers are on this page? Papers from 2023, 2022, 2019, 2016, 2014. The newest year is at the top.
How many marks is the Fitting and Machining N1 November paper? The paper is usually out of 100 marks and you get 3 hours to write it.
Are the memos included? Yes. 3 of the 5 papers on this page have their marking memo next to the question paper.
Which topics come up most in these papers? Metals and plastics, drilling machines and screw threads, based on 4 papers on this page.
