This page has every Fitting and Machining N1 August paper we have, from 2018 to 2021: 3 question papers and 3 memos in 6 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Fitting and Machining N1 August papers by year
Topics that come up most in Fitting and Machining N1 August
Counted from the questions in the papers on this page: how many papers each topic appears in, and its average marks.
Topic Papers Average marks
Metals and Plastics 3 12 Measuring Instruments 3 11 Drilling Machines 3 10 Screw Threads 3 6 Hand Tools 3 6 Keys and Keyways 3 6 Occupational Safety 3 5 Marking Off 3 5 Hand Taps, Stocks, Dies and Reamers 3 5 Fasteners 3 4
Fitting and Machining N1 August 2021 question papers and memos
August 2021

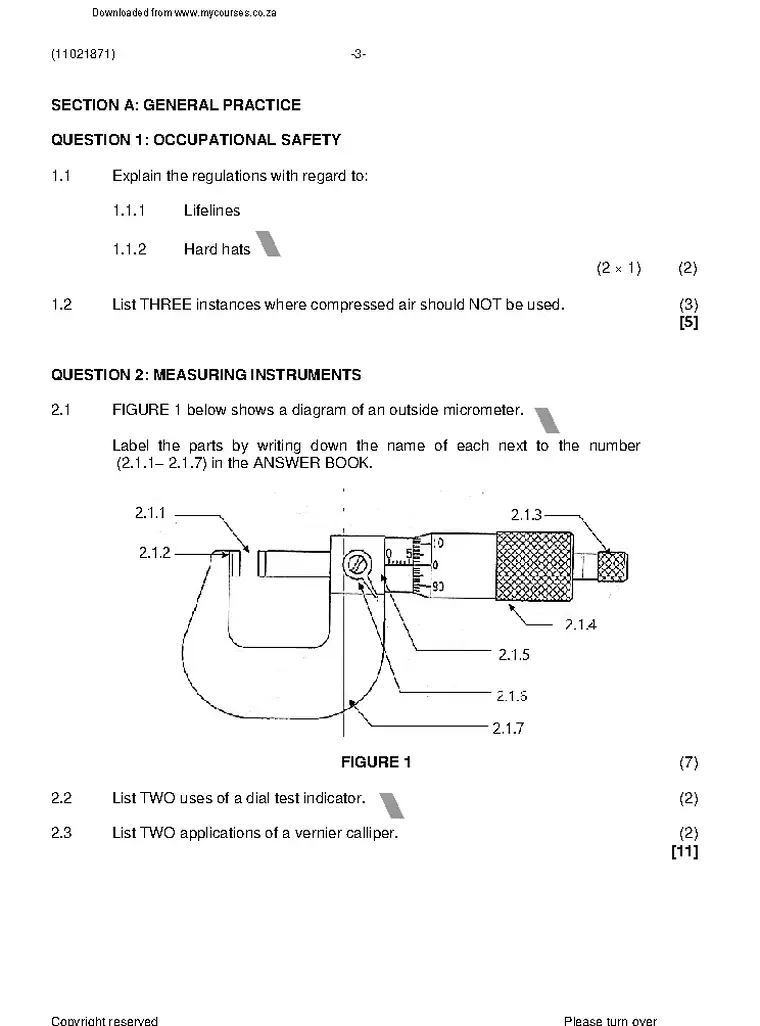

Fitting and Machining N1 August 2021 question paper
100 marks · 3 hours · 9 pages · 13 questions
What is in this paper (13 questions)
Q1
Occupational Safety 1.1 Explain the regulations with regard to: 5 marks
Q2
Measuring Instruments 2.1 FIGURE 1 below shows a diagram of an outside micrometer. 11 marks
Q3
Screw Threads 3.1 Define the following terms that are used to describe screw threads: 6 marks
Q4
Hand Tools 4.1 A hacksaw cuts metals with the use of a blade. 6 marks
Q5
Metals and Plastics 5.1 Non-ferrous metals contain no iron. 12 marks
Q6
Marking Off 6.1 Specific tools and accessories are used for marking off. 5 marks
Q7
Keys and Keyways 7.1 Give TWO uses of a feather key. (2) 6 marks
Q8
Fasteners 8.1 Components can be fixed together permanently or temporarily. 4 marks
Q9
Hand Taps, Stocks, Dies and Reamers 9.1 Name THREE types of taps. (3) 5 marks
Q10
Drilling Machines 10.1 The radial drilling machine is suited for flexible work. 10 marks
Q11
Grinding Machines and Machine Cutting Tools 11.1 FIGURE 3 below shows a pedestal grinding wheel. 10 marks
Q12
The Centre Lathe 12.1 FIGURE 4 below shows a diagram of a lathe. 10 marks
Q13
The Milling Machine 13.1 The milling machine is used for various operations in industry. There are 10 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. All sketches must be neat, reasonably large and in good proportion. Label all sketches. Write neatly and legibly. (11021871) -3-
Fitting and Machining N1 August 2019 question papers and memos
August 2019

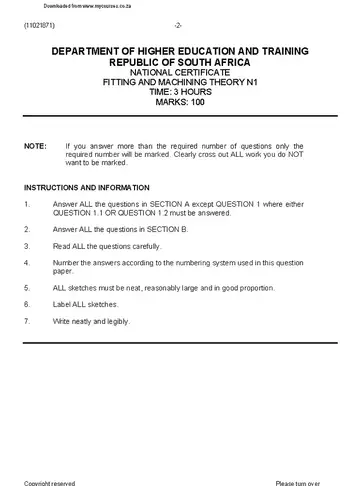

Fitting and Machining N1 August 2019 question paper
100 marks · 3 hours · 8 pages · 13 questions
What is in this paper (13 questions)
Q1
Occupational Safety 1.1 The Occupational Health and SafetyA ct No. 85 of 1993 prescribes certain 5 marks
Q2
Measuring Instruments 2.1 List THREE uses of a vernier height gauge. (3) 11 marks
Q3
Screw Threads 3.1 Define each of the following screw-thread terms: 6 marks
Q4
Hand Tools 4.1 Give ONE use of each of the following hammers: 6 marks
Q5
Metals and Plastics 5.1 Cast iron is a rough formt ofhe i ron-carbon alloy. On ecan distinguish 12 marks
Q6
Marking Off 6.1 What is a scriber used for? (1) 5 marks
Q7
Keys and Keyways 7.1 Keyways can be cut on different machines using different methods. 6 marks
Q8
Fasteners 8.1 A split pin is an auxiliary fastening device. 4 marks
Q9
Hand Taps, Stocks, Dies and Reamers 9.1 A stock and a die are used together to cut an external thread. 5 marks
Q10
Drilling Machines 10.1 Drilling machines are the most used equipment in a workshop. 10 marks
Q11
Grinding Machines and Machine-Cutting Tools 11.1 Name TWO factors to consider when choosing a grinding wheel. (2) 10 marks
Q12
The Centre Lathe 12.1 FIGURE 4 depicts a centre lathe. 10 marks
Q13
The Milling Machine 13.1 List FOUR basic safety measures for the operator to follow when usa ing 10 marks
Instructions to candidates Answer ALL the questions in SECTION A except QUESTION 1 where either
Fitting and Machining N1 August 2018 question papers and memos
August 2018

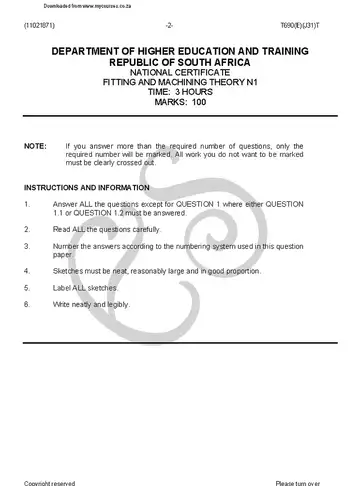

Fitting and Machining N1 August 2018 question paper
100 marks · 3 hours · 7 pages · 13 questions
What is in this paper (13 questions)
Q1
Occupational Safety 1.1 State FIVE safety measures that you must follow when using machinery. (5) 5 marks
Q2
Measuring Instruments 2.1 Explain the steps that you would follow to determine the inside diameter of a 11 marks
Q3
Screw Threads 3.1 Define each of the following terms used to describe screw threads: 6 marks
Q4
Hand Tools 4.1 Give ONE use for each of the following files: 6 marks
Q5
Metals and Plastics 5.1 There are various tests to distinguish between cast iron and mild steel. 12 marks
Q6
Marking Off 6.1 Give TWO uses of a surface gauge. (2) 5 marks
Q7
Keys and Keyways 7.1 Explain the function of a feather key. (2) 6 marks
Q8
Fasteners 8.1 Machine screws are threaded to be used in holes which are already tapped. 4 marks
Q9
Hand Taps, Stocks, Dies and Reamers 9.1 List THREE ways to prevent thread cutting faul twshen tapping holes in a 5 marks
Q10
Drilling Machines 10.1 Explain each of the following drilling processes: 10 marks
Q11
Grinding Machines and Machine Cutting Tools 11.1 List FIVE factors to consider when choosing a grinding whe felor a specific 10 marks
Q12
Centre Lathe 12.1 The centre lathe is found in most modern workshops. 10 marks
Q13
Milling Machine 13.1 List SIX basic safety measures an operator should follow when using a milling 10 marks
Instructions to candidates Answer ALL the questions except for QUESTION 1 where either QUESTION 1.1 or QUESTION 1.2 must be answered. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Sketches must be neat, reasonably large and in good proportion. Label ALL sketches. Write neatly and legibly. (11021871) -3- T690(E)(J31)T
No papers match. Clear the filters
Questions about these papers
Which years of Fitting and Machining N1 August papers are on this page? Papers from 2021, 2019, 2018. The newest year is at the top.
How many marks is the Fitting and Machining N1 August paper? The paper is usually out of 100 marks and you get 3 hours to write it.
Are the memos included? Yes. 3 of the 3 papers on this page have their marking memo next to the question paper.
Which topics come up most in these papers? Metals and plastics, measuring instruments and drilling machines, based on 3 papers on this page.
