This page has every Engineering Drawing N1 August paper we have, from 2018 to 2021: 3 question papers and 3 memos in 6 PDFs. The newest year is first. Each paper shows the first page of questions, its marks and time, and what the questions cover.
Engineering Drawing N1 August papers by year
Engineering Drawing N1 August 2021 question papers and memos
August 2021

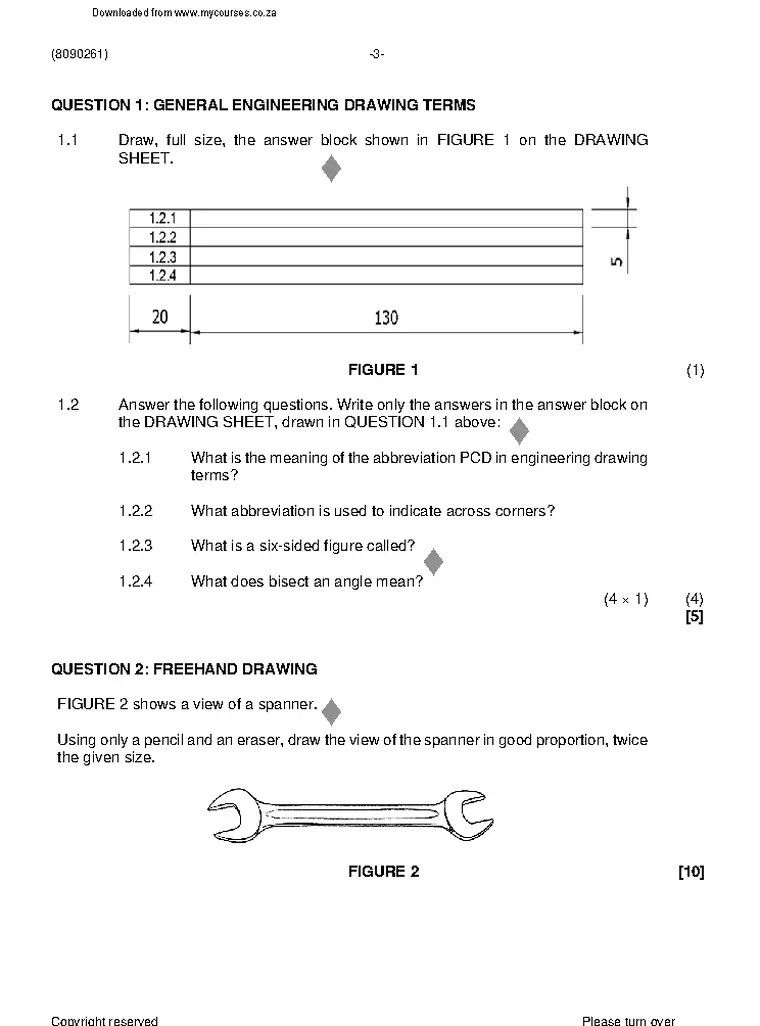

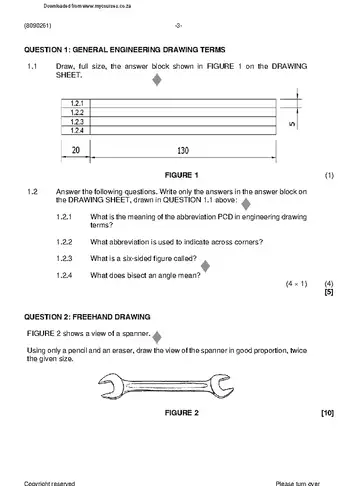

Engineering Drawing N1 August 2021 question paper
100 marks · 4 hours · 8 pages · 7 questions
What is in this paper (7 questions)
Q1
General Engineering Drawing Terms 1.1 Draw, full size, the answer block shown in FIGURE 1 on the DRAWING 5 marks
Q2
Freehand Drawing FIGURE 2 shows a view of a spanner. 10 marks
Q3
Geometrical Construction/Reproduction Drawing FIGURE 3 shows a view of a cover plate. ♦ 16 marks
Q4
First-Angle Orthographic Projection FIGURE 4 shows an isometric view of a component. 15 marks
Q5
Isometric Drawing FIGURE 5 shows TWO primary views of a component in first-angle orthographic 17 marks
Q6
Sectional Drawing FIGURE 6 shows TWO primary views of a casting in first-angle orthographic projection. 17 marks
Q7
Prisms and Pyramids FIGURE 7 shows the front view and an auxiliary view of a cone. 10 marks
Instructions to candidates Answer all the questions. Read all the questions carefully. Number the answers according to the numbering system used in this question paper. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. Do all drawing work, including candidate information, in pencil. All drawing work must conform to the latest SANS 10111 Code of Practice for Engineering Drawing. Work neatly. (8090261) -3-
Engineering Drawing N1 August 2019 question papers and memos
August 2019

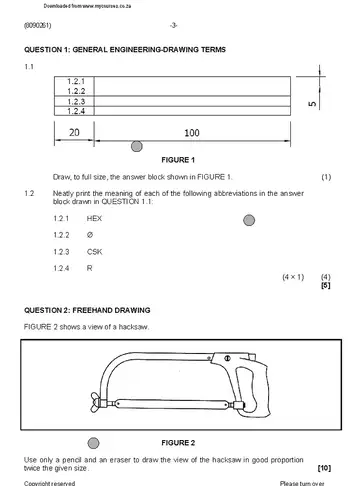

Engineering Drawing N1 August 2019 question paper
100 marks · 4 hours · 8 pages · 8 questions
What is in this paper (8 questions)
Q1
General Engineering-Drawing Terms Draw, to full size, the answer block shown in FIGURE 1. (1) 5 marks
Q2
Freehand Drawing FIGURE 2 shows a view of a hacksaw. 10 marks
Q3
Reproduction Drawing FIGURE 3 shows a view of a cover plate 14 marks
Q4
First-Angle Orthographic Projection FIGURE 4 shows an isometric view of a component. 16 marks
Q5
Isometric Drawing FIGURE 5 shows TWO primary views of a geometric model in firs-tangle orthographic 18 marks
Q6
Sectional Drawing FIGURE 6 shows TWO parrimy views of a casting in-angl fire orst thographic 17 marks
Q7
Prisms and Pyramids FIGURE 7 shows the front and auxiliary views of a triangular prism. 10 marks
Q8
Layout and Neatness Balanced layout and neatness of the completed DRAWING SHEET [10] 10 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. Only the candidate information on the DRAWING SHEET may be done in ink. ALL other drawing work must be done in pencil. ALL drawing work must conform to the latest SANS 10111 Code of Practice for Engineering Drawing. Work neatly. (8090261) -3-
Engineering Drawing N1 August 2018 question papers and memos
August 2018
Engineering Drawing N1 August 2018 question paper
100 marks · 4 hours · 8 pages · 7 questions
What is in this paper (7 questions)
Q1
General Engineering Drawing Terms 1.1 Copy the answer block shown in FIGURE 1 full-sized to the 5 marks
Q2
Freehand Drawing FIGURE 2 shows a view of a shifting spanner. 9 marks
Q3
Reproduction Drawing FIGURE 3 shows a view of a cover plate. 14 marks
Q4
First-Angle Orthographic Projection FIGURE 4 shows an isometric view of a component. 15 marks
Q5
Isometric Drawing FIGURE 5 shows TWO primary views of a component in first-angle orthographic 18 marks
Q6
Sectional Drawing FIGURE 6 shows two primary views of a casting in first-angle orthographic projection. 15 marks
Q7
Prisms and Pyramids FIGURE 7 shows the front and auxiliary views of a hexagonal pyramid. 10 marks
Instructions to candidates Answer ALL the questions. Read ALL the questions carefully. Number the answers according to the numbering system used in this question paper. Use both sides of the DRAWING SHEET. Draw a 15 mm border on both sides of the DRAWING SHEET. ALL drawing work, including candidate information, must be done in pencil. ALL drawing work must conform to the latest SANS 10111 Code of Practice for Engineering Drawing. Write neatly and legibly. (8090261) -3- T570(E)(J20)T
