Feb/March Supplementary 2017 (National DBE)
200 marks · 3 hours · 18 pages · 6 questions
What is in this paper (6 questions)

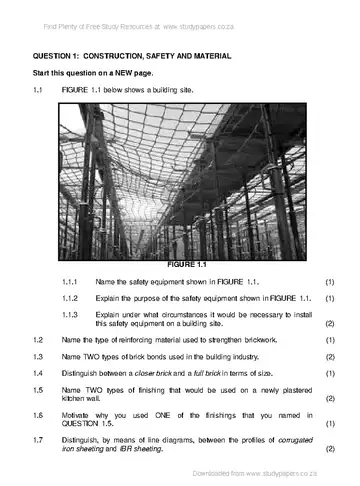

- Q1 Construction, Safety and Material 30 marks
- Q2 Advanced Construction and Equipment 40 marks
- Q3 Civil Services 30 marks
- Q4 Materials and Quantities 30 marks
- Q5 Applied Mechanics 30 marks
- Q6 Graphics and Communication 40 marks
Instructions to candidates
- This question paper consists of SIX questions.
- Answer ALL the questions.
- Answer each question as a whole. Do NOT separate subsections of questions.
- Start the answer to EACH question on a NEW page.
- Do NOT write in the margins of the ANSWER BOOK.
- You may use sketches to illustrate your answers.
- Write ALL calculations and answers in the ANSWER BOOK or on the attached ANSWER SHEETS.
- Use the mark allocation as a guide to the length of your answers.
- Make drawings and sketches in pencil, fully dimensioned and neatly finished off with descriptive titles and notes to conform to SthAe NS/SABS Code of Practice for Building Drawings.
- For the purpose of this questino paper, the size of a brick should be taken as 220 mm x 110 mm x 75 mm.
- Use your own discretion where dimensions and/or details have been omitt ed.
- Answer QUESTIONS 1.8, 2.6, 3.3, 4.4, 5.2, 5.3, 6.1 and 6.2 on the attached ANSWER SHEETS using drawing instruments, where necessary.
- Write your CENTRE NUMBER and EXAMINATION NUMBER on every ANSWER SHEET and hand them in with your ANSWER BOOK, whether you have used them or not.
- Due to electronic transfer, drawings in the question paper are NOT to scale.
